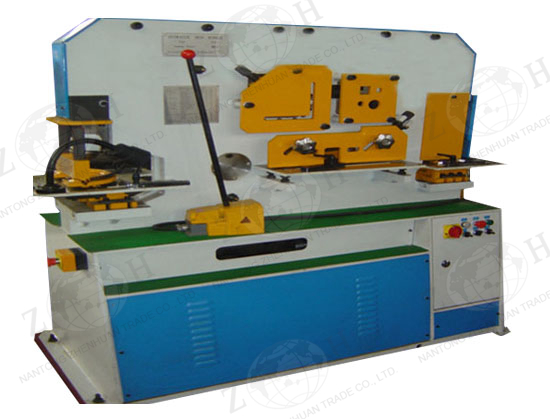

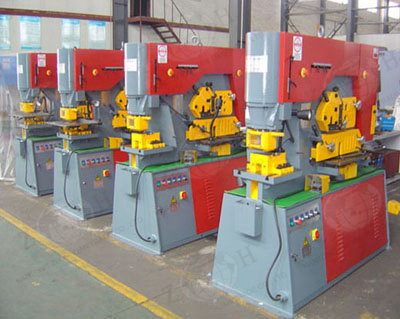

Iron Worker



Description of iron worker:
Iron worker is also called combined punching & shearing machine, combining punching, shearing, pressing and folding functions together. It can process round bar, square bar, T-bar, equal angle bar, I-beam, channel steel, etc.
Iron worker has two kinds, hydraulic driven and mechanical driven.




Main technical data of hydraulic iron workers:
Type Q35Y-16 Q35Y-20 Q35Y-25 Q35Y-30
Pressure (Ton) 55 75 110 140
Max. cutting thickness (mm) 16 20 25 30
Plate strength  (N/mm2) <=450 <=450 <=450 <=450
Cutting angle (degree) 7 8 8 8
Shearing size of one stroke
(thickness x width mm)
16x250
8x400
20x330
10x480
25x330
16x600
30x355
20x600
Ram stroke (mm) 80 80 80 80
Number of strokes (times/min) 8 8 6 8
Throat depth (mm) 300 355 400 600
Punching thickness (mm) 16 20 25 26
Max. Punching diameter (mm) 25 30 35 38
Power of main motor (kW) 4 5.5 7.5 11
Dimensions (L x W x H mm) 1640x730x1770 1860x800x1900 2355x960x2090 2680x1040x2300
Weight of machine (kg) 1600 2000 4800 6800

Main technical data of mechanical iron workers:
Type QA34-25 Q35-16
Pressure (Ton) 110 63
Max. cutting thickness (mm) 25 16
Plate strength (MPa) <=450 <=450
Cutting angle (degree) 11 13
Shearing size of one stroke (thickness x width, mm) 28 x 160 20 x 140
Ram stroke (mm) 36 26
Number of stroke (cycle/min) 25 36
Throat depth (mm) 600 450
Punching thickness (mm) 25 16
Max. punching diameter (mm) 35 28
Main motor power (kW) 7.5 4
Dimension (L x W x H, mm) 2885 x 1290 x 2450 1877 x 1945 x 725
Weight (kg) 7000 5500

Parameter of cutting functions of iron workers:
Profile Round Bar Square Bar Equal Angle T-bar I-beam Channel
90º cut 45º cut 90º cut 45º cut
Q35-16 45 40x40 120x120x12 100x100x10 120x120x12 100x100x10 180x94x6.5 180x68x7
QA34-25 65 55x55 150x150x18 110x110x14 150x150x18 110x110x14 300x126x9 300x85x7.5
Q35Y-16 45 40x40 120x120x12 70x70x8 120x120x12 60x60x8 126x74x5 126x53x5.5
Q35Y-20 50 45x45 140x140x12 70x70x10 140x140x12 70x70x10 160x86x6 160x160x6.5
Q35Y-25 60 50x50 160x160x14 80x80x7 160x160x14 80x80x10 200x102x9 200x75x9
Q35Y-30 65 55x55 180x180x16 180x180x10 180x180x16 80x80x10 280x124x10.5 280x86x11.5
