YHD28 Double-action Hydraulic Streching Press


Description of hydraulic press:
There are several different kind of hydraulic presses for different purpose, such as four-column universal hydraulic press, single-action hydraulic stamping press, double action hydraulic stretching press, etc. If you don’t know how to choose, pleaselet us know your detailed requirements or product information and we can give you the best suggestion.





Features of YHD28 double-action Hydraulic stretching press:
-- Four-column type: simple, economical and good capability;
-- Frame type: good rigidity, high precision, anti load-deflection.
-- Hydraulic system adopts pin-fit valve integration system, reliable action, long life, small hydraulic impact, few potential leakage possibilities.
-- Imported PLC control system is separate, with thee operation methods: adjustment, manual and semi-automatic.

Application of YHD28 double-action hydraulic stretching press:
This series is specially for all kind of stretching purpose, especially for various containers, automotive covers, household appliance, kitchen appliance, etc.
Optional accessories of YHD28 double-action hydraulic stretching press:
Punching & cutting cushion device; movable worktable; movement sensor; phototube safety device; oil cooling device, etc.

Main technical data of YHD28 double-action hydraulic stretching press:

Item YHD28
40/63 63/100 200/300 315/400 400/630 500/800 630/1030 1200/2000 2000/2600
Nominal force KN 630 1000 3000 4000 6300 8000 10300 20000 26000
Stretching force KN 400 630 2000 3150 4000 5000 6300 12000 20000
Pressing force KN 300 400 1000 800 2300 3000 4000 8000 6000
Kicking-out force KN 190 190 400 630 1000 1000 2000 4000 1000
Hydraulic pressure MPa 25 25 25 25 25 25 25 25 25
Stretching stroke mm 500 600 700 800 800 1000 1300 1350 2000
Edge pressing stroke mm 300 300 400 400 800 1000 1300 1350 2000
Stretching slide size L-R mm 560 720 1000 1260 1400 3000 1900 2000 2000
F-B mm 500 580 900 1200  1400 2200 1500 1950 1800
Edge-press slide size L-R mm 560 720 1000 1260 1400 3000 2600 3000 3500
F-B mm 500 580 900 1260 1400 2200 2200 2500 3500
Worktable size L-R mm 560 720 1000 1260 1400 3000 2600 3000 3500
F-B mm 500 580 900 1200 1400 2200 2200 2500 3500
Opening height for stretch slide mm 1100 1300 1400 1500 1700 1800 2000 2600 4500
Opening height for edge-press slide mm 700 800 900 1000 1150 1800 2000 2400 4500
Stretching slide stroke speed Quick-down mm/s 120 120 100 100 100 100 100 100 100
Working mm/s 20 12-14 15 10 12 12 10-12 10 10
Returning mm/s 100 120 52 60 80 100 80 80 80
Machine dimension L-R mm 2500 4000 4000 4500 5600 5800 5700 7000 8000
F-B mm 1500 2000 2000 2800 3000 3000 2800 2800 3800
H mm 3200 4100 4400 4600 5500 6400 7400 9500 8800
Motor power KW 5.5 7.5 15 22 30 50 60 154 154

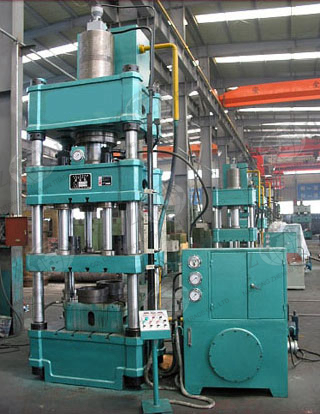

Product display
