YHD27 Single-action Hydraulic Stamping Press



Description of hydraulic press:
There are several different kind of hydraulic presses for different purpose, such as four-column universal hydraulic press, single-action hydraulic stamping press, double action hydraulic stretching press, etc. If you don’t know how to choose, pleaselet us know your detailed requirements or product information and we can give you the best suggestion.



Features of YHD27 single-action hydraulic stamping press:

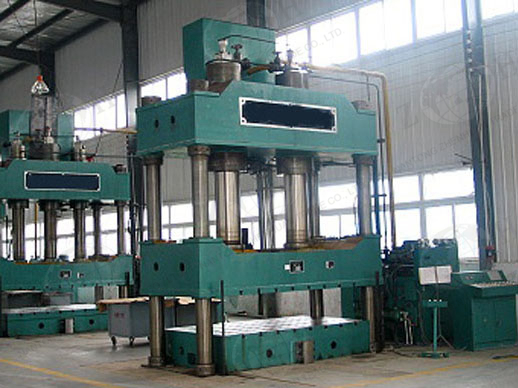

-- Four-column type: simple, economical and good capability;

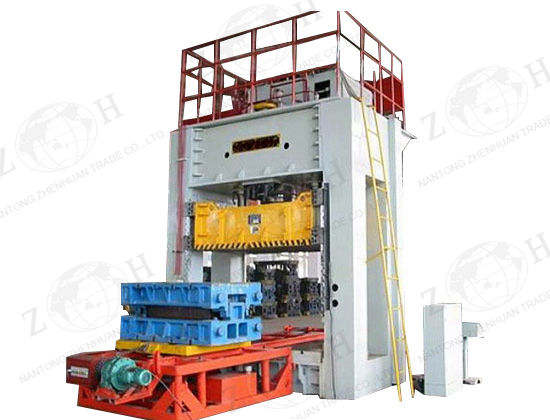

-- Frame type: good rigidity, high precision, anti load-deflection.
-- Hydraulic system adopts pin-fit valve integration system, reliable action, long life, small hydraulic impact, few potential leakage possibilities.
-- Imported PLC control system is separate, with thee operation methods: adjustment, manual and semi-automatic.
-- There is hydraulic pad inside the bottom frame whose working (with knock-out, without knock-out, flanging) can be controlled from the operation panel.

Application of YHD27 single-action hydraulic stamping press:
This series is suitable for stretching, bending, flanging, cold extruding, punching and cutting purpose, especially for automotive parts, household appliances, kitchen appliance, etc.

Optional accessories of YHD27 single-action hydraulic stamping press:
Punching & cutting cushion device; movable worktable; phototube safety device; oil cooling device, etc.

Main technical data of YHD27 single-action hydraulic stamping press:

Item YHD27
100 200 315 400 500 630 800 1000 1250 1500
Nominal force KN 1000 2000 3150 4000 5000 6300 8000 10000 12500 15000
Kick-out force KN 100 450 600 650 900 1200 1200 1800 2500 3200
Max. opening height mm 900 1100 1250 1350 1500 1500 1500 1500 1800 1800
Cushion force KN 200 630 1600 2000 2000 2000 3000 3000 3500 4000
Cushion stroke mm 200 250 300 350 350 350 350 350 400 400
Slide stroke mm 600 700 800 800 900 900 900 900 900 900
Slide stroke speed Quick-down mm/s 120 100 100 100 100 80 80 80 80 80
Working mm/s 14 15 10 9 14 10 16 12 9 14
Returning mm/s 120 70 60 50 70 55 90 65 45 70
Cushion stroke speed Kicking-out mm/s 50 40 20 15 30 30 30 30 30 30
Returning mm/s 100 80 40 30 60 60 60 60 60 60
Worktable size L-R mm 850 1000 1200 1200 1500 3000 3000 3000 3000 3000
F-B mm 600 800 1200 1200 1200 1600 1800 2000 2000 2000
Cushion size L-R mm 650 600 800 800 1000 2200 2200 2200 2200 2200
F-B mm 400 500 800 800 800 1200 1250 1500 1500 1500
Movable worktable capacity T  -  -  - 15 15 15 15 20 20
Motor power KW 7.5 15 22 22 44 50 60 70 80 160

Product display
