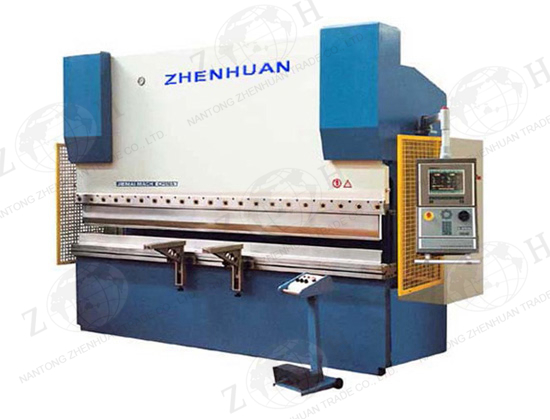

CNC Hydraulic Press Brake



Description of WC67Y series hydraulic press brake:
WC67Y series hydraulic press brake is normal digital control, without CNC control system. The adjustment of backgauge ram stroke is manual.

Features of WC67Y series hydraulic press brake:
-- Steel-welded construction, vibration to eliminate stress, with high strength and good rigidity.
-- Hydraulic top-drive, steadiness and reliability.
-- Mechanical stop, steel torsion bar to maintain synchronization, high precision.
-- Motorized-adjusting device of backgauge and rams stroke, fine adjusting by handwheel, numerical display.
-- Deflection compensation unit installed on the top die.
-- For the machine size more than 250T, length 4000mm, it adopts manual crowned bottom die holder.
-- Hydraulic press brake is guarded with safety interlocker.

Description of WC67K series hydraulic press brake:
-- Main machine selects WC67Y series press brakes.
-- Equipped with CNC control system from ESTVN, DELEM or YBELEC.
-- Equipped with world's famous hydraulic valves, oil pump, ball screw and linear guide, raster ruler, etc.

Main technical data of WC67 series hydraulic press brake:

Code Nominal Pressure         Length of working table        The depth of throat        Ram stroke       Number of Stroke      Motor power                    Weight        Overall Dimension
(L×W×H)
kN mm     mm    mm      /min-1   kW   kg mm
40/2200    400    2200    200     100    11   4     2800     2300×1300×1700
40/2500    400    2500    200     100    11  4     3200     2600×1300×1700
63/2500    630    2500    250     100    10  4     4800     2600×1400×2100
63/3200    630    3200    250     100    10  4     5500     3300×1400×2100
80/3200    800    3200    320     100    8    7.5     6100     3300×1450×2150
80/4000    800    4000    320     100    8   7.5     7000     4100×1450×2150
100/3200    1000   3200    320     120    8  7.5     7200     3300×1500×2200
100/4000    1000    4000    320     120    8  7.5     8500     4100×1500×2230
125/3200    1250    3200    320     120    8  7.5     7400     3300×1500×2260
125/4000    1250    4000    320     120    8  7.5     8800     4100×1500×2260
160/3200    1600    3200    400     200    8  11     10600     3300×1700×2400
160/4000    1600    4000    400     200    8  11     12800     4100×1700×2450
160/6000    1600    6000    400     120    7  15     17000     6200×1700×2550
200/3200    2000    3200    400     200    7  15     14000     3400×1800×2700
200/4000 2000 4000 400 200 7 15 17000     4200×1800×2750
200/6000 2000 6000 400 200 7 15 22000     6200×1800×3000
250/6000 2500 6000 400 200 7 18.5 30000     6200×1900×3100
300/6000 3000 6000 400 200 6 22 36000     6200×2000×3200
300/7000 3000 7000 400 200 6 22 40000     7200×2000×3400
400/7000 4000 7000 400 250 5 30 45000    7200×2100×3600
