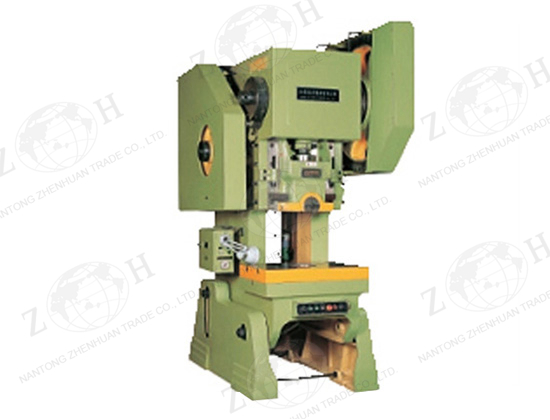

J23 General Inclinable Eccentric Press



Main features of J23 general inclinable eccentric press:
-- Adopts horizontal crankshaft structure
-- Rigid rotating-key clutch
-- JD2-63A/80A adopts dual rotating-key structure to overcome rebound when punching
-- Manual adjusting die height, scale display
-- The codes with “A” are equipped with emergency braking device, which could make slide stop in the range of 0~135 degree
-- Light curtain protection device is optional



Main technical data of J23 general inclinable eccentric press:
 Item JC23-6.3 J23-10B J23-16 J23-16B J23-25A
Nominal force kN 63 100 160 160 250
Nominal stroke mm 3 4 5 5 5
Slide stroke mm 35 60 55 70 80
SPM min-1 170 145 125 125 60
Max. die height mm 110 130 160 170 180
Die height adjustment mm 30 35 45 45 70
Distance between slide center to frame mm 110 130 160 170 210
Worktable size mm 200×310 240×360 300×450 320×480 400×600
Worktable thickness mm 40 50 40 60 70
Bore size on worktable
(top dia x depth x bottom dia)
mm Φ60 Φ120×20
×Φ100
Φ100 Φ100 Φ120
Bore size on bed
(dia x F-B x L-R)
mm Φ140×110×160 Φ130×90
×180
Φ210×160
×240
Φ210×160
×240
Φ180×130
×260
Slide size mm 120×140 150×170 180×200 180×200 210×250
Shank hole size mm Φ30×55 Φ30×55 Φ40×60 Φ40×60 Φ40×70
Max. inclined angle ° 30 25 25 25 25
Clearance between columns mm 150 180 220 220 260
Motor power kW 0.75 1.1 1.5 1.5 2.2
Outline size F-B mm 780 915 1150 1150 1325
L-R mm 610 700 900 900 990
H mm 1505 1690 1910 1910 2140
Net weight kg 360 600 1080 1080 1900


Item JG23-40A JC23-63A JD23-63A J23-80A JD23-80A
Nominal force kN 400 630 630 800 800
Nominal stroke mm 6 8 8 9 9
Slide stroke mm 120 120 120 130 130
SPM min-1 55 50 50 45 45
Max. die height mm 220 270 270 290 290
Die height adjustment mm 80 80 80 100 100
Distance between slide center to frame mm 260 260 260 270 300
Worktable size mm 480×710 480×710 480×710 520×860 580×860
Worktable thickness mm 80 90 90 100 100
Bore size on worktable
(top dia x depth x bottom dia)
mm Φ220×25
×Φ180
Φ220×45
×Φ180
Φ200×45
×Φ180
Φ200×45
×Φ180
Φ200×45
×Φ180
Bore size on bed
(dia x F-B x L-R)
mm Φ200×150
×300
Φ250×200
×340
Φ250×200
×340
Φ250×200
×340
Φ280×220
×380
Slide size mm 270×320 280×320 280×320 280×380 280×380
Shank hole size mm Φ50×70 Φ50×80 Φ50×80 Φ60×75 Φ60×75
Max. inclined angle ° 25 25 25 20 20
Clearance between columns mm 300 350 350 410 410
Motor power kW 4 5.5 5.5 7.5 7.5
Outline Size F-B mm 1600 1810 1885 1810 1990
L-R mm 1180 1350 1350 1410 1410
H mm 2310 2640 2670 2790 2945
Net Weight kg 3180 4000 4970 4790
5970

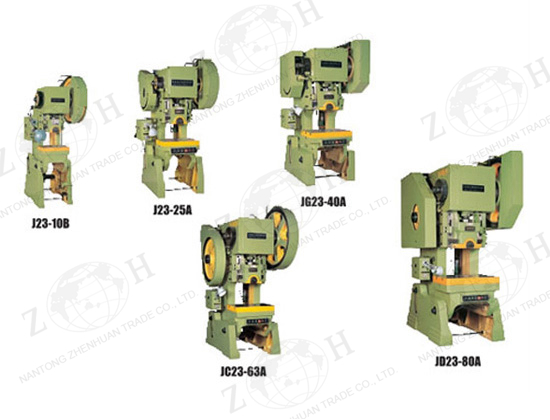

Product display
