Spiral Filter Core Tube Welding Machine




I Description of spiral filter core tube wedling machine
For various filters, the core tube can be spiral seam locked or spiral welded. The spiral filter core tube welding machine is specially designed for welding below perforated type filter core tubes.

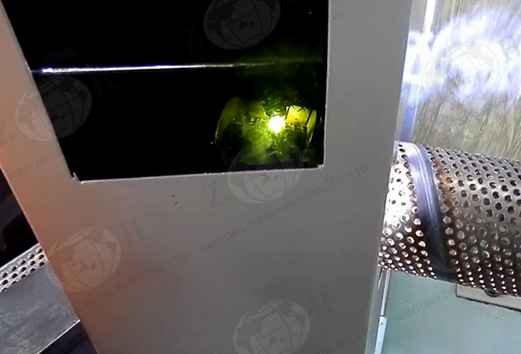

The machine adopts TIG for spiral seam welding, clean and stable.



II Main technical data
Item Data
Suitable raw material Carbon steel, stainless steel
Raw material thickness 0.9-2.5mm
Material strip width 30-110mm
Filter screen tube diameter Φ 14-170mm
Main driving motor power 0.75kW
Cutting motor power 3kW
Welding method TIG
Welding current 300A
Cutting method Saw blade stop to cut
Production speed 0-4m/min
Main machine dimension 1500 x 1200 x 1400mm
Weight About 600kg

Product display
