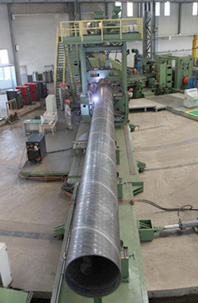

Spiral-seam ERW Steel Pipe Welding Machine





Description of spiral-seam ERW steel pipe welding machine:spiral-seam ERW steel pipe welding line
Spiral-seam ERW steel pipe welding machine is for producing spiral-seam round pipes with diameter range from 219mm to 3500mm. Suitable max. steel pipe wall thickness is 25.4mm.



Working flow of spiral-seam ERW steel pipe welding machine:
Decoiling → driving & leveling → cutting ends & butt welding→ feeding material → pre-bend → forming → inside welding → outside welding → fly cutting → drawing out → repairing weld → inspection



Layout of spiral-seam ERW steel pipe welding machine:


Main technical data of spiral-seam ERW steel pipe welding machine:
No. Code Spiral Pipe Dia.
(mm)
Steel Strip Width
(mm)
Steel Thickness
(mm)
Steel Coil Weight
(Ton)
Total Electric Power
(kW)
Line Occupation
(m2)
1 LXGJ-400 Φ219~426 400~750 5~10 10 180 18x180
2 LXGJ-500 Φ219~529 400~800 5~11 15 200 18x180
3 LXGJ-600 Φ219~630 450~1050 6~12.7 20 300 21x180
4 LXGJ-700 Φ219~720 500~1250 5~14 20 400 21x180
5 LXGJ-800 Φ219~820 500~1300 6~18 30 500 24x180
6 LXGJ-1000 Φ219~1020 500~1300 6~20 30 800 24x180
7 LXGJ-1400 Φ325~1420 500~1560 6~22 30 1000 26x180
8 LXGJ-1600 Φ426~1620 500~1560 6~25.4 40 1500 30x180
9 LXGJ-1800 Φ508~1820 1100~1600 8~25.4 40 1500 30x180
10 LXGJ-2000 Φ508~2020 1200~2000 8~25.4 40 1500 30x180
11 LXGJ-2400 Φ508~2400 1200~2000 8~25.4 40 1800 30x180
12 LXGJ-3000 Φ508~3000 1200~2000 8~25.4 40 1800 30x180
13 LXGJ-3500 Φ720~3500 1200~2000 8~25.4 40 1800 30x180
