Tube Swaging Machine



Description of tube swaging machine:

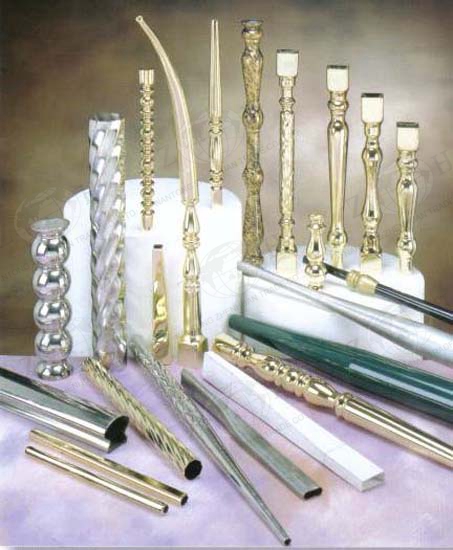

There are various swaging machines for producing decorative tubes, such as twisting machine, tapering machine, beading machine, etc.
In certain diameter range, one tube swaging machine can process different shapes by changing dies.



Main technical data of some typical tube swaging machines:
Type HGJ-25 HGJ-51 HGJ-76 HGJ-114
Tube diameter, mm 12-25 16-51 25-76 38-114
Wall thickness, mm 0.25-1.2 0.3-1.2 0.7-1.5 0.7-1.5
Tube length, mm 290 290 360 600
Forming speed, s/pc 3-12 3-12 8-30 10-40
Motor power, kw 3 4 7.5 11
Machine weight, kg 1100 2000 3000 5000

Product display
