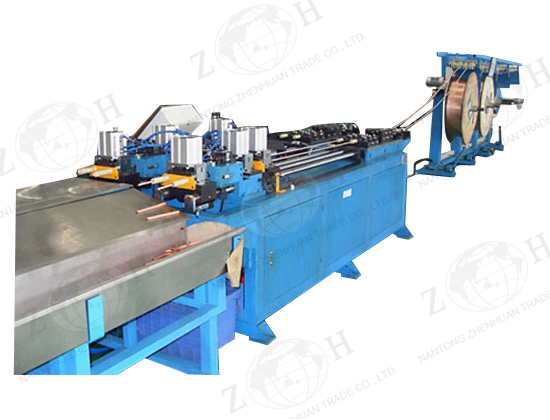

Copper Tube Cutting Machine


Description of copper tube cutting machine:
This machine is specially designed for straightening coil copper tubes, detecting length and chipless cutting automatically.




Main features of copper tube cutting machine:
1) Servo feeding, stable and high repositioning precision
2) One time cutting four pieces, high efficiency
3) Adopting stretch-breaking cutting method, chipless and less mouth shrinking rate
4) PLC control, HMI operation, high automation-- auto feed, cut and unload, auto alarm.




Main technical data of opper tube cutting machine:
Item
Data
Remarks
Suitable material
Coil copper tube

Copper tube diameter
Ф6.35 ~ Ф19.05mm

Copper tube wall thickness
0.3~1.0mm

Copper coil size
Outer diameter: 1000~1250mm
Inner diameter: 130mm

Copper coil weight
Max. 280kg

Cutting pieces
4
Dual-drive, one time
Cutting length
Min. 40 mm, no max. limit
When less than 100mm, no pre-stretching
One-time feeding stroke
1000 mm

Working efficiency
8 times per minute
L=1000
Straightness tolerance
≤2‰

Repositioning precision
L≤1000 mm
≤0.3mm
 d0—original wall thickness
d1—finished wall thickness
f= (d1 - d0) / d0 %
L≥1000 mm
≤0.6mm
Mouth inner diameter shrinking rate
f < 20%
Length difference among four pieces
≤0.5mm (L=1000)
Surface condition after cut
No apparent scratch, draw marks; No burrs on mouth
Roundness of cut tubes
Non-roundness ≤3%
Electric power
380V, 50Hz, 3kW
With air switch
Air source
0.5-0.7MPa

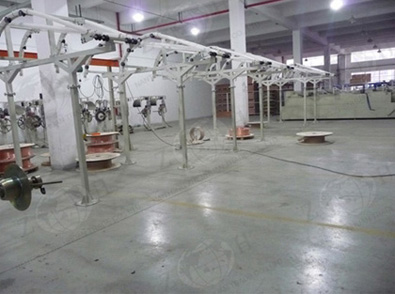

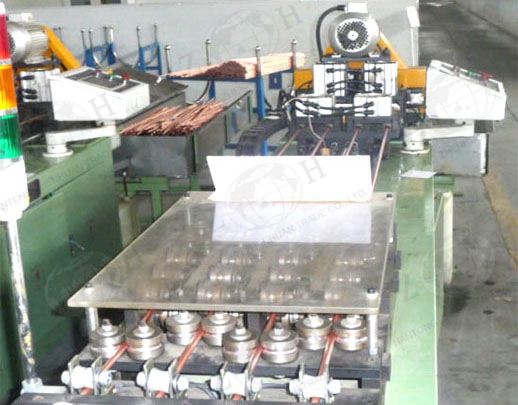

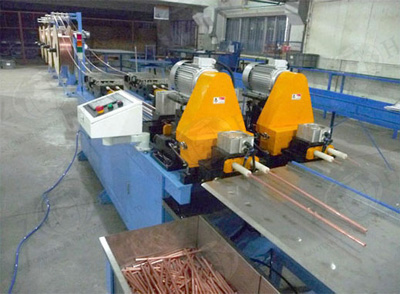

Product display
