Copper Tube Rolling Mill


Description of copper tube rolling mill:
Copper tube rolling mill is configured based on required final copper tube diameter.
Generally, there need melting furnace & caster, tube rolling mill, double-serial drawing machine (or triple-serial drawing machine), vertical type drawing machine, and auxiliary equipment, etc.




No. Item Data Remarks
1 Melting furnace & caster                For billet
  Max. melting capacity 5000kg
Rated induction melting power 190kW x 2
Melting rate 1500kg/h
Temperature keeping oven capacity 2000kg
Temperature keeping power 125kW
Temperature keeping melting rated 500kg/h
Billet leading speed 0~25cm/min
Billet numbers 3

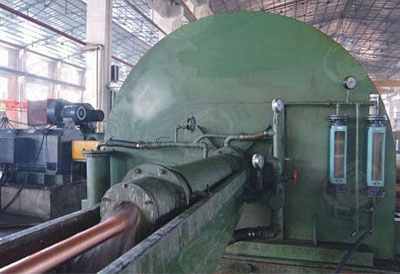

2 Planetary rolling mill   For rolling copper tubes
  Blank billet size Φ80~90×20~25mm OD x wall thickness
Max. billet reel weight 1000kg
Rolled tube size Φ50x2.5mm, Φ47x2.3mm, Φ25x2.3mm
Roller diameter Φ270mm
Main driving motor power 220kW x 2 DC
Auxiliary driving motor power 220kW DC
Rolling speed 13~17m/min
Billet feeding speed 0.7~1.2m/min
Tube diameter tolerance ±0.50mm
Tube wall thickness tolerance ±0.20mm
Nitrogen gas flow 800~1000L/min Pressure 0.3MPa
Nitrogen gas consumption 300~400L/min Purity 99.99%
Total power 720kW
Output per shift Not less than 42t
Electric consumption Less than 260kW·h/t

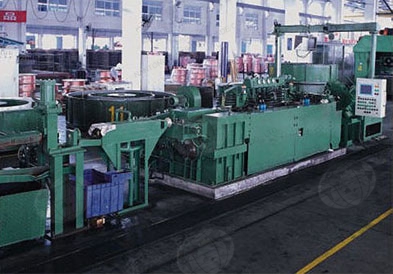

3 Double-serial drawing machine   For drawing tubes
  Drawing strength No.1 drawer 15T
No.2 drawer 10T
Drawing speed No.1 drawer 0~65m/min Continuously adjustable
No.2 drawer 0~85m/min Continuously adjustable
Input tube dia. No.1 drawer Max. 50mm
No.2 drawer Max. 40mm
Output tube dia. No.1 drawer Max. 40mm
No.2 drawer Max. 30mm
Motor power No.1 drawer 200kW, DC
No.2 drawer 185kW, DC
4 Vertical type drawing machine   For drawing tubes
  Max. drawing strength 8000kg
Drawing speed 0~1000m/min
Blank tube size Φ48 x 2.4mm
Min. drawn tube size Φ6 x 0.3mm
Total power About 451kW

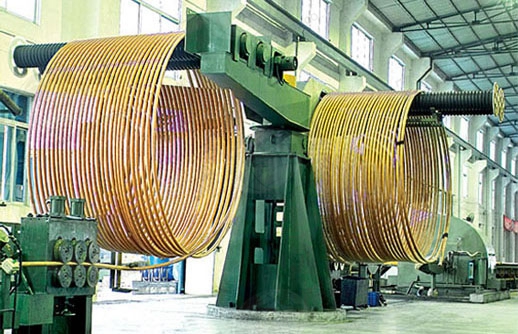

Product display
