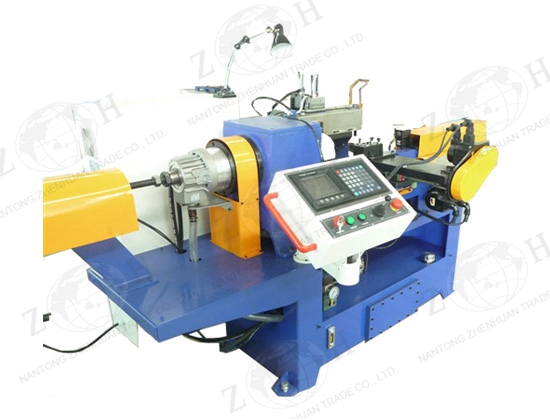

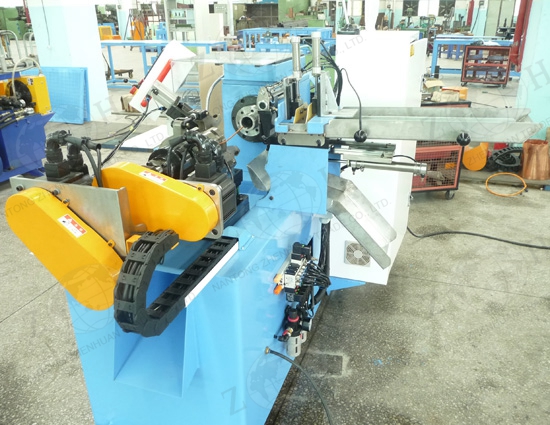

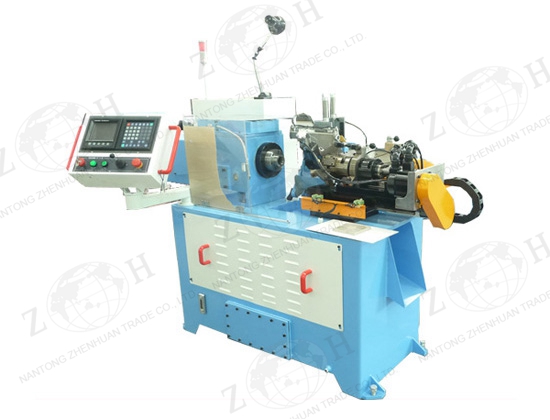

Drier Filter Tube Spinning Machine


Description of tube spinning machine:
Tube spinning machine, also called as tube necking machine, pipe necking-in machine, is specially designed for closing or necking-in metal tubes, especially copper tubes, which are used as oil storage, muffler and filter drier for AC, refrigerator, heater, automotive, etc.




Main features of tube spinning machine:
1) Two axis CNC control, small error, high speed
2) Hydraulic system is equipped with water cooling system
3) High speed mandrel speed 2800rpm, inverter control, speed adjustable
4) Automatic loading & unloading, high productivity




Main technical data of tube spinning machine:
No. Item Data
1 Max. tube dia x wall thickness (copper) Φ30x1mm (or Φ50x1mm / Φ80x1mm)
2 Min. tube diameter Φ8mm
3 Max. workpiece length
200mm
4 Min. workpiece length
40mm
5 Average working efficiency 15s per piece
6 Control method CNC double-axis control
7 Loading/unloading method automatic
8 Driving method Hydraulic + pneumatic
9 Main spindle motor Inverter control speed adjustable
10 Total power consumption 6.5KW
11 Electric power 380V, 50HZ
12 Air source 0.5~0.8MPa
13 Hydraulic pressure 0.5~6MPa

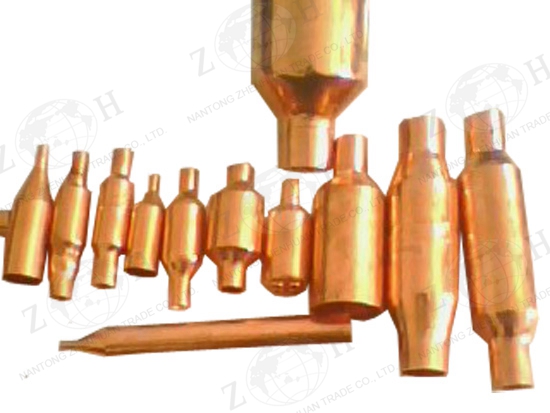

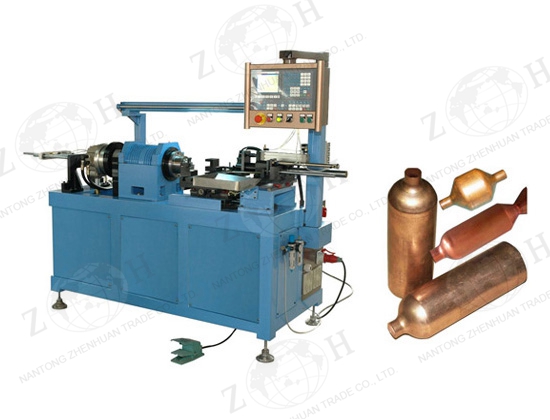

Typical copper drier filter tubes produced by tube spinning machine:

Product display
