Post Tensioning Corrugated metal Duct Machine


Description of post tensioning corrugated metal duct machine:
Post tensioning orrugated metal ducts are the most economical means to create a void for the tensile elements. These thin-wall galvanized corrugated 28ga / 0.38mm ~ 24ga / 0.6mm steel metal ducts also provide a secondary corrosion protection with excellent bond behavior between tendon grout and concrete.

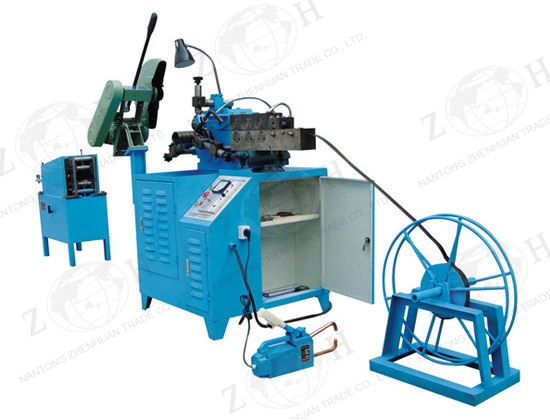

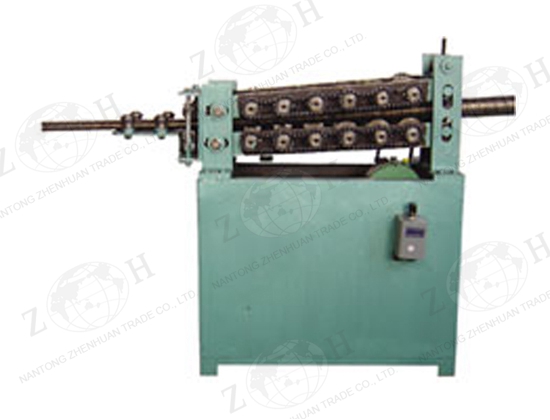

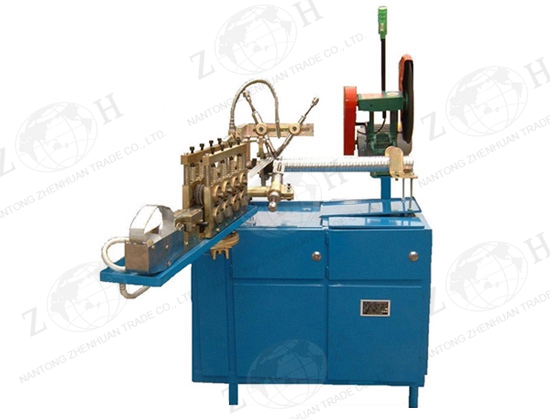

This machine is comprised of two machines, one is for forming round ducts and the other is for forming oval shape from round ducts.
This post tensioning corrugated metal duct machine is suitable for both indoor and site work.



Main technical data of post tensioning corrugated metal duct machine:
Item Data
Suitable post tensioning duct diameter 35~135mm
Raw material Galvanized steel, 0.2~0.4mm thick
Raw material width 35.4~36mm
Pitch of spiral 23mm
Seam lock type Double seam lock*
Strip linear feeding speed 0-35m/min
Motor power for round duct machine 4kW
Motor power for oval duct machine 3kW
Total weight About 600kg
Dimension of round duct machine 1300 x 1800 x 1300mm
Dimension of oval duct machine 800 x 450 x 800mm

Note: Photo sketch of double seam lock:

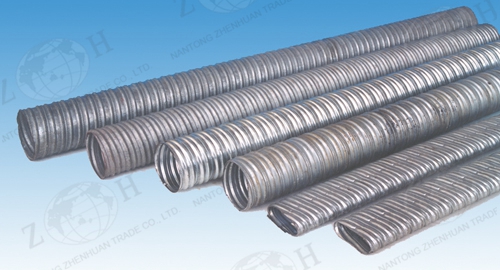

Clear photo of post tensioning corrugated metal ducts:

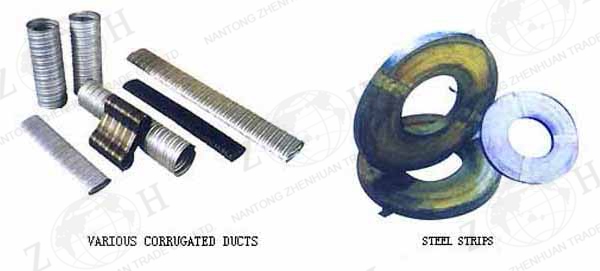

Product display
