Shock Absorber Outer Cylinder End Closing & Forming Machine


I Description of shock absorber outer cylinder end closing and forming machine
This machine is comprised of tube end closing machine and hydraulic tube end forming machine, specially for processing end of outer cylinder of shock absorber.

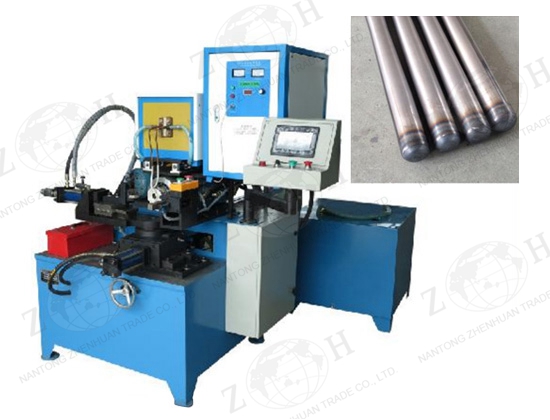

II Shock absorber outer cylinder end closing machine
2.1 Main features

- Adopting online induction heating for hot spinning, simple, quick and clean closing tube ends
- End wall thickness after closing can be increased for pressure withstanding, no more welding.
- OMRON PLC control and Weinview touch screen operation, simple and convenient
- Imported hydraulic chuck, auto clamping
- Special mould steel, high-temperature resistant, anti-wear
- Compulsive lubricating system, prolonging life of dies

2.2 Main technical data
Item Data
Suitable tube diameter 20-70mm
Suitable tube wall thickness 1-4mm
Suitable tube length 80-600mm
Necking-in / closing speed 5~15s
Production speed 100~300 pcs/h
Main motor power 6.5kW
Induction heating power 35kW
Machine dimension About 1600 x 2250 x 2050mm
Machine weight About 1850kg
PLC + HMI OMRON


III Shock absorber outer cylinder end forming machine
This machine adopts hydraulic pressing to form outer cylinder end.

3.1 Main features:
- Semi-automatic, manual loading & unloading
- Quick tool changing, few minutes
- World famous hydraulic / electric components, reliable quality
- Pressing force is adjustable, 5~40 tons
- Dual design of pressure-maintaining & stroke-controlling, easy adjustment and uniform production

3.2 Main technical data

Item Data
Max. tube diameter 60mm
Max. tube length 500mm
Max. pressing stroke 200mm
Production speed 10~20 seconds
Hydraulic pump motor power 5.5kW
Max. Output force 40T
Machine dimension About 2050 x 1300 x 2800mm
Machine weight About 4000kg

Product display
