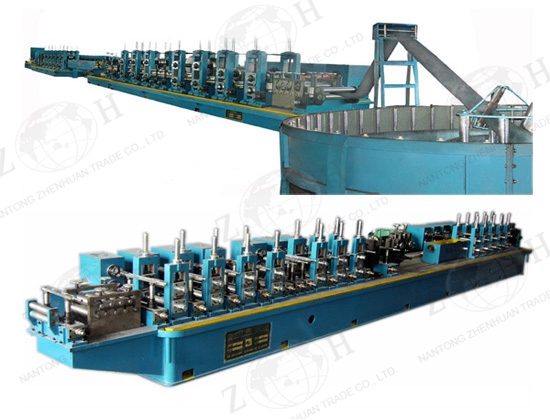

Straight-seam ERW Steel Pipe Welding Machine




Description of straight-seam ERW steel pipe welding machine:
This welding machine adopts high frequency ERW to weld roll formed steel pipes in straight-seam. It is comprised of decoiler, butt welder, steel strip looping device (cage type or spiral accumulator type), roll forming section, welding section, flying shear cutting device and unloading rack. The whole procedure is full automatic except for the butt welding.
Straight-seam ERW steel pipe welding machine has various capacity for steel pipes diameter from 8mm to 610mm.

Main technical data of straight-seam ERW steel pipe welding machines:

Model Pipe diameter
(mm)
Wall thickness
(mm)
Material Welding speed
(m/min)
Total power
(kW)
Power of HF
welding device

(kW)
GH-16 8-20 0.5-1.5 Carbon steel
and alloy
бb≤580MPa
бs≤380MPa
20-80 22 60
GH-32 12-32 0.8-2.5 20-80 60 100
GH-50 16-50 1-4.2 20-70 75 200
GH-76 20-76 1-4.5 20-70 132 300
GH-89 32-89 1-4.5 20-70 180 400
GH-114 40-114 1-5 20-65 200 400
GH-165 60-165 2-6 20-65 240 600
GH-219 76-219 2-8 20-65 290 800
GH-273 89-273 3-10 10-50 360 800
GH-325 114-325 3-10 10-50 480 800
GH-355 140-335 3-10.5 10-50 555 800
GH-377 165-377 3-12.5 10-50 600 1000
GH-426 219-426 4-12.5 10-40 675 1000
GH-508 219-508 6-16 8-30 945 1200
GH-610 325-610 6-16 8-30 1065 1200
