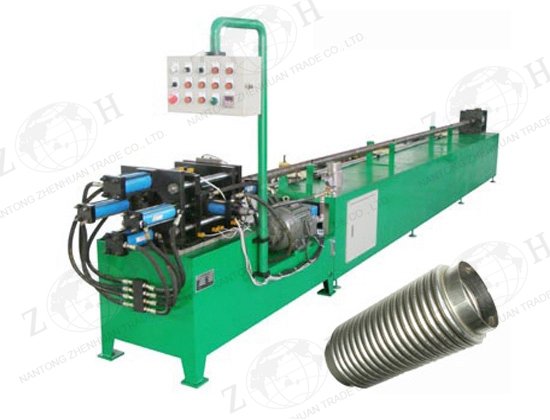

Corrugated Metal Hose Machine


Description of corrugated metal hose machine:
This machine is specially designed for producing corrugated metal hose for various purpose, such as petrochemical, machinery, construction, civil, etc.
Blank material for this machine is usually straight stainless steel pipes. The hydraulic forming head will form helical corrugations on metal pipes directly.
Clear photos of corrugated metal hose:

Main technical data of corrugated metal hose machine:

Item Data
Suitable corrugated pipe diameter 6~50mm
Suitable raw pipes Stainless steel / carbon steel pipes
Raw pipe wall thickness 0.2~0.5mm
Production speed 2.5~6 seconds per corrugation
Corrugation deepness 1.75~2.1mm
Main driving motor power 4.0kW
Dimension About 4850 x 600 x 1200mm
Weight About 650kg
Note: We can design corrugated metal hose machine according to your special requirements.
