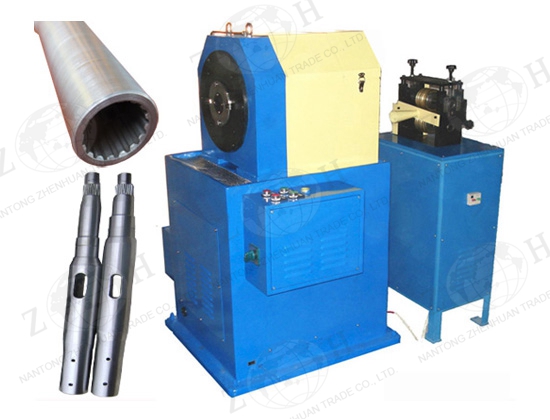

Rotary Swaging Machine


Description of rotary swaging machine:
Rotary swaging machine is high efficiency, high quality forging equipment. It is suitable for forging special shapes on bars and pipes, especially used for steel ropes, automotive parts, tapered products, etc.We can provide CNC rotary swaging machine which can automatically change swaging shape and size, widely used for glasses parts, fishing tools, sports products, special springs, etc.



Main technical data of rotary swaging machine:
Item X50 X30 X20 X12 X05
Suitable material Any ferrous and non-ferrous metal bars, pipes and wires
Suitable max. bar diameter 40mm 26mm 16mm 12mm 5mm
Suitable min. bar diameter 8mm 5mm 4mm 3mm 0.5mm
Suitable max. pipe diameter 55mm 35mm 20mm 16mm 7mm
Suitable min. pipe diameter 8mm 5mm 4mm 3mm 0.5mm
Swaging size precision ±0.025mm ±0.02mm ±0.02mm ±0.02mm ±0.01mm
Surface finishment 3.2 1.6 1.6 1.6 0.8
Mould quantity 4 4 4 4 3
Mould size 127x80mm 100x60mm 100x60mm 80x35mm 50x20mm
Pressing-ball quantity 12 12 12 12 12
Lubricant motor 0.75kW 0.75kW 0.75kW 0.75kW 85W
Lubricant flow 20L/min 12L/min 12L/min 12L/min 4L/min
Spindle speed 215rpm 300rpm 350rpm 450rpm 650rpm
Spindle driving motor power 30kW 15kW 11kW 7.5kW 1.5kW

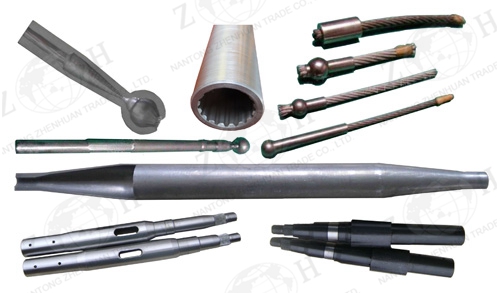

Product display
