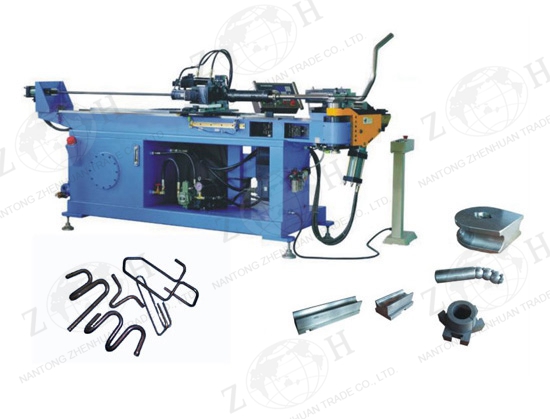

CNC Tube Bending Machine




Description of CNC tube bending machine:
CNC tube bending machine is for bending metal tubes automatically. It can bend metal tubes into very complicated three-dimensional shapes.

Main features of CNC tube bending machine:
1) Three-axis digital control, hydraulic clamping
2) Gear & rack driving, each axis is equipped with high precision planetary reducer
3) Tracking die is restored pneumatically
4) CNC control, 12.1” HMI operation, simple and easy

Main technical data of CNC tube bending machine:

Item WGJ-22 WGJ-40
Max. bending angle 190º 190º
Max. bending radius 100mm 150mm
Max. tube length 2000mm 3000mm
Max. tube wall thickness 1.6mm 2mm
Max. tube diameter Ф22mm Ф40mm
Productivity (S / curve) 2S 4-5S
Speeds of every axle Feeding axle 800mm/S 600mm/S
Rotating axle 180º/S 90º/S
Bending axle 180º/S 180º/S
Accuracy of every axle Feeding axle ±0.2mm ±0.5mm
Rotating axle ±0.2º ±0.2º
Bending axle ±0.5º ±0.5º
Power of every axle Feeding axle 0.75kW 1.5kW
Rotating axle 0.4kW 0.75kW
Bending axle 1.5kW 3.0kW
Air source 0.4-0.7MPa -
Hydraulic pressure (or 3.0-5.0MPa)* 5.0-8.0MPa
Power source AC380V, 50Hz (or as required)
Dimension (L x W x H) 2000 x 700 x 1500mm 3200 x 800 x 1500mm
Weight 800kg 1800kg
Note:  WGJ-22 can be either full pneumatic or full hydraulic driven. WGJ-40 can be only hydraulic driven. Product display
