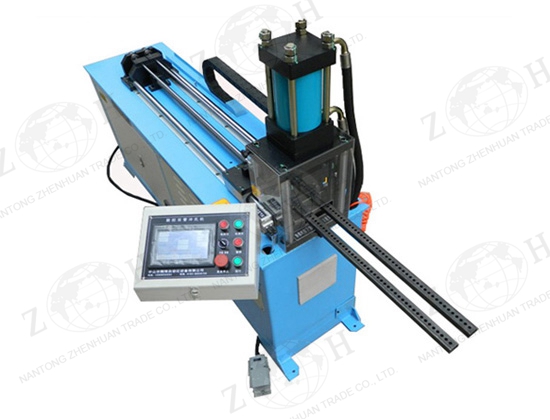

Square Tube Punching Machine


Description of square tube punching machine:
Square tube punching machine is for punching round or square holes on square tube/pipe or rectangular tube/pipes. We are professional manufacturers for square tube punching machines. We can design the machine according to your tube size, wall thickness and hole size.



Main features of square tube punching machine:
1) Servo feeding, high precision
2) Hole position can be preset on HMI
3) Hydraulic driven, low noise
4) PLC control, HMI operation, full automatic



Main features of typical square tube punching machine:
Item Data
Suitable tube / pipe material Iron, copper, aluminum
Suitable square/rectangular tube/pipe size As per requirement
Suitable tube/pipe wall thickness Max. 2mm (or as per requirement)
Max. tube/pipe length As per requirement
Min. distance between hole centers Round hole 30mm; square hole 35mm.
Hole position precision ±0.3mm
Punching speed 4 seconds per hole

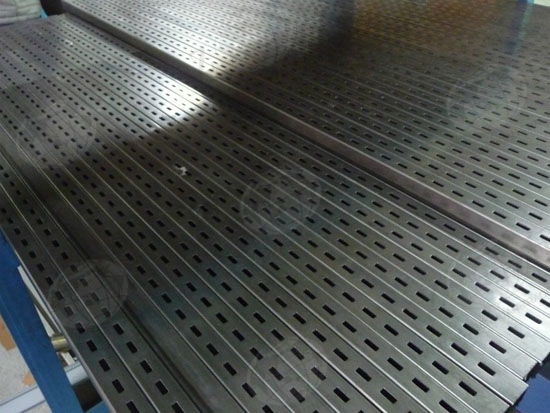

Photo of punched square tubes:

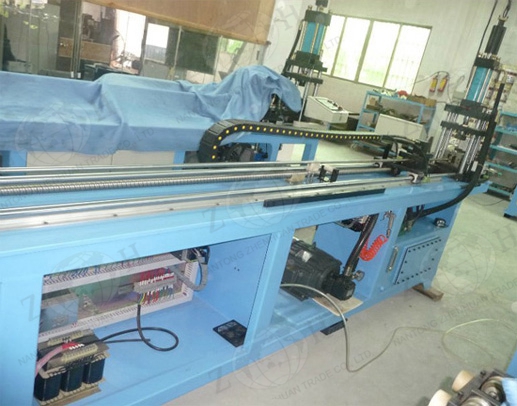

Product display
