Large Diameter Corrugated Steel Pipe Machine


Description of large diameter corrugated steel pipe machine for culverts & tunnels:
This machine is special for producing large diameter spiral steel corrugated pipes used as supports for culverts, tunnels and columns.
This machine is PLC control, full automatic.



Main technical data of large diameter corrugated steel pipe machine for culverts & tunnels:
Item Data
Diameter of tube 800~6000mm
Thickness of strip 2.0~3.0mm carbon steel or galvanized steel
Width of strip 300mm
Decoiler Hydraulic expansion
Capacity of decoiler Max. 5000kg
Lock seam type of steel pipe Spiral seam lock
Corrugation size Width 76mm, height 25mm
Working speed 0~20m/min continuously adjustable
Cutting method Plasma cutting
Machine weight About 10 tons
Machine size
(L x W x H)		 Main machine: 4500 x 1600 x 1400mm
Decoiler: 2500 x 1200 x 2000mm
Unloading rack: 2000 x 1600 x 1400mm
Total power 44.5KW
Control type PLC + HMI

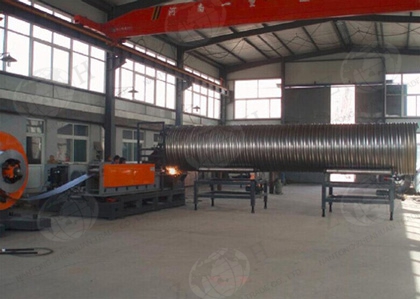

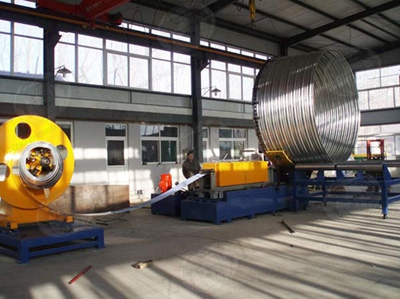

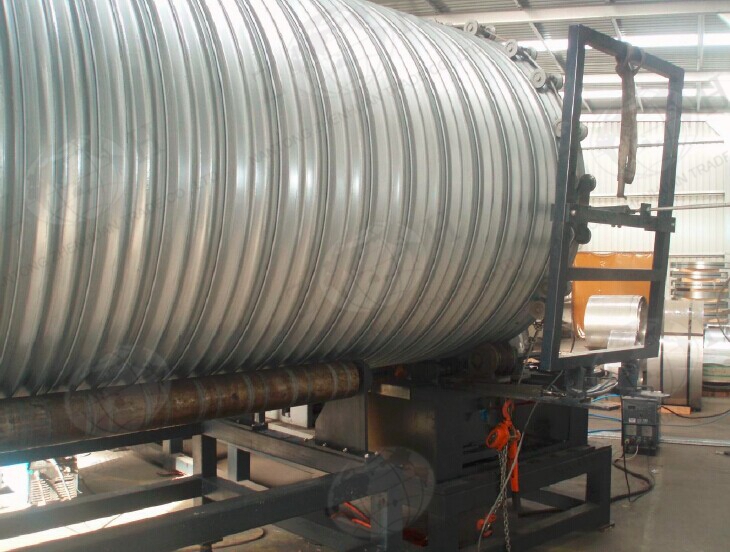

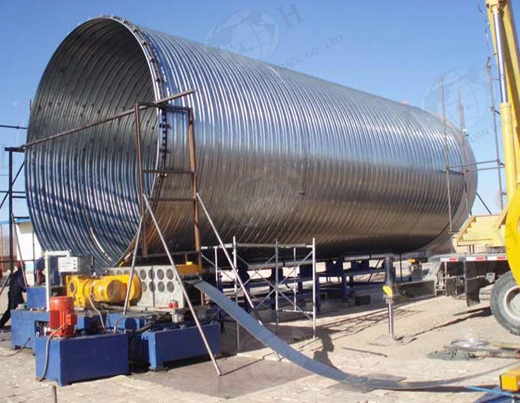

Large diameter corrugated steel pipe machine working photos:



Product display
