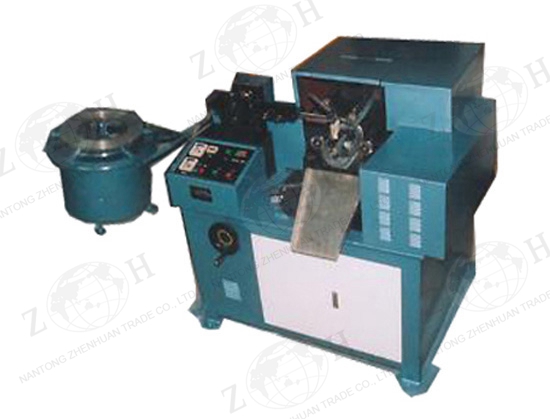

Spiral Filter Core Making Machine

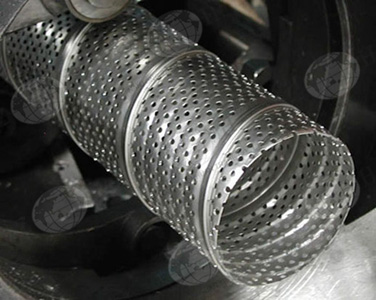

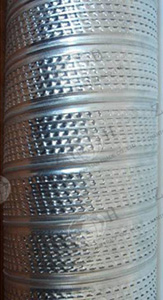

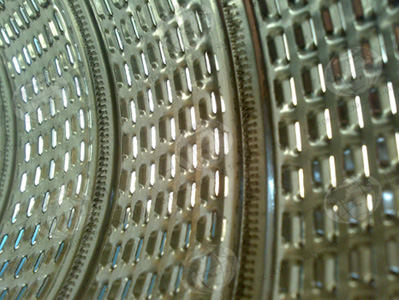

  Photo of normal spiral filter core Photo of perforated spiral filter core

Description of spiral filter core making machine:
This machine is specially designed for producing spiral steel cores used as center core for automotive filters.

Main features of spiral filter core making machine:
-- Very easy and quick change diameter of spiral core.
-- Any length can be cut according to requirement.
-- By adjusting clutch, the machine can be suitable for different thick materials
-- PLC control, high efficiency, stable quality, less production cost.
-- Hydraulic drive, large driving moment and stable running.


Main technical data of spiral filter core making machine:
Item Data
Suitable spiral filter core diameter 35~150mm
Suitable material Galvanized steel, stainless steel
Suitable material thickness 0.25~0.7mm
Suitable material width 50 / 60mm
Linear feeding speed 0-35m/min
Main driving motor power 3kW
Main forming machine dimension 1600 x 800 x 1240mm
Main machine weight About 800kg

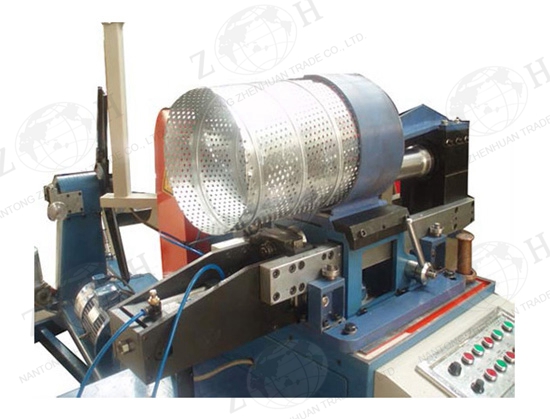

Note: We can provide special machine for your specia required filter cores, for example, another spiral filter core making machine for max. 600mm diameter filter cores.  Product display
