Microchannel Aluminum Flat Tube Cutting Machine




Description of microchannel aluminum flat tube cutting machine:

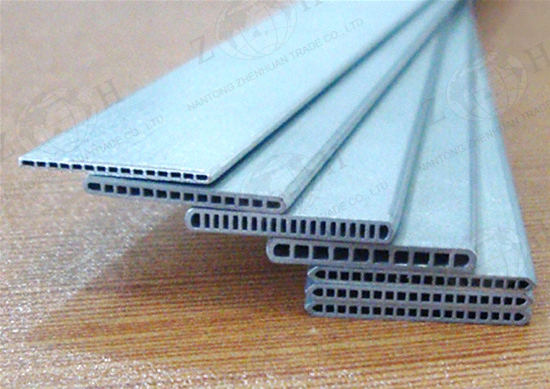

Multiflow condenser in automotive AC uses micro multi-hole aluminum flat tubes. This machine is specially designed for straightening such micro multi-hole flat aluminum tube in coils, necking and cutting to length automatically. So this machine is also called as condenser tube cutting machine, or multi-hole tube cutting machine.
This machine adopts special cutting technology, chipless and very small deformation on cutting section.

Main features of microchannel aluminum flat tube cutting machine:
1) Servo feeding, stable and high repositioning precision
2) One time cutting two pieces, high efficient
3) With special stretch-breaking cutting function, less mouth shrinking rate
4) PLC control, high automation – auto decoiling, auto feeding, auto cutting.



Main technical data of microchannel aluminum flat tube cutting machine:
Item Data
Material Coil flat aluminum tube
Flat aluminum tube width 14-32mm
Flat aluminum tube thickness 1.5-3mm
Aluminum coil size Outer diameter: 1100mm
Inner diameter: 450-500mm
Height: 300-330mm
Weight: max. 300kg
Cutting pieces 2
Cutting length Min. 100 mm, no max. limit
One-time feeding stroke 200-900 mm
Cutting speed 15 times per minute (L=650)
Cut-to-length precision ≤ ±0.2mm
Straightening precision in width direction ±0.04 / 850mm
Straightening precision in thickness direction ±0.02 / 850mm
Duration for changing cutting blade ≤ 5min
Duration for changing tube width ≤ 15min
Total electric power About 10kW
Air source 0.5-0.7MPa
Total weight About 2800kg

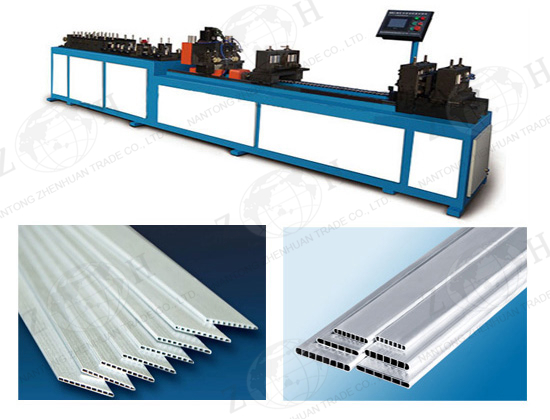

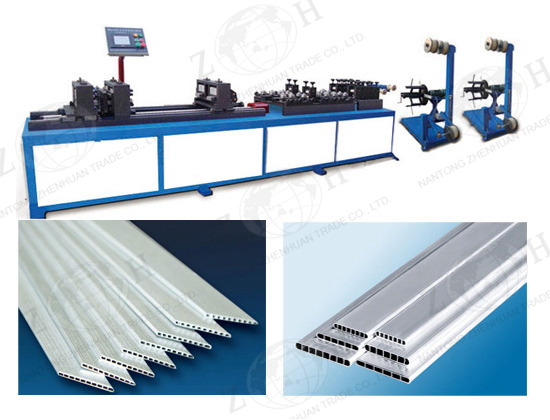

Product display
