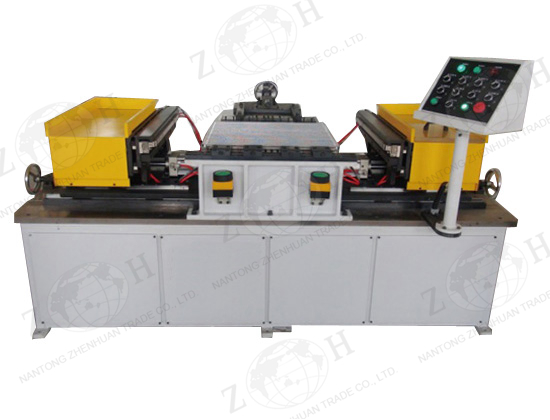

Semi-automatic Radiator Condenser Evaporator Core Builder





I Description of semi-automatic radiator condenser evaporator core builder:
This machine is specially designed for assembling core of automotive radiators and condensers (single-layer flat tubes).
It is also suitable for PF type evaporator cores building (double-layer flat tubes).
Flat tubes, fins and header pipes are manually applied. Machine will automatically order and clamp to build a core.
The machine is capable for different size cores by changing different tools and adjusting pushing strokes.


II Main features of semi-automatic radiator condenser evaporator core builder:
- Universal chassis adapting to various size cores
- Automatic ordering & clamping
- For different pitch only change pitch control tooling
- PLC control


III Main technical data of semi-automatic radiator condenser evaporator core builder
Item Data
Suitable flat tube length (core width) 100-450mm
Suitable core length 150~500mm
Max. flat tube numbers 70 (@ 6.5mm pitch)
Suitable flat tube width 12~20mm
Suitable flat tube thickness 2mm
Flat tube pitch customized
Header pipe diameter customized
Suitable fin height 5mm (or customized)
Suitable fin width Same as width of flat tube
Core building precision Length & height ± 1mm
Diagonal length ±1.5mm
Main die changing speed Less than 30 minutes
Air source 0.6~0.8MPa
Machine dimension
About 2500 x 1500 x 2200mm
