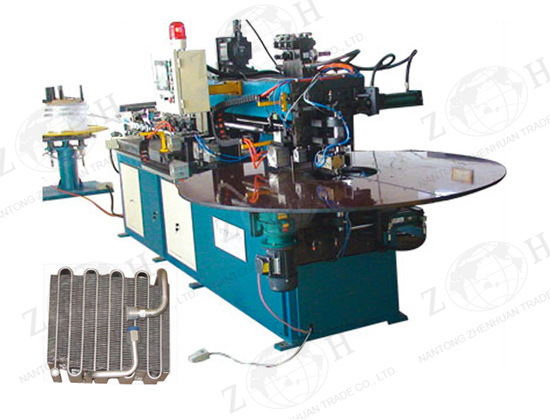

Auto Serpentine Tube Bending machine



Description of auto serpentie tube bending machine:
This machine is specially for bending multiport flat aluminum tubes to be serpentine shape for condenser and evaporator purpose.
This machine is comprised of coil tube pay-off stand, straightening device, auto feeding device, auto bending head, stretch cutting device.
This machine is PLC control, HMI operation. Feeding length, bending radius and bend quantity can be preset on the touch screen and the program can be saved for future use.
By using servo motor feeding and ball screw transmitting, repositioning accuracy is very high.

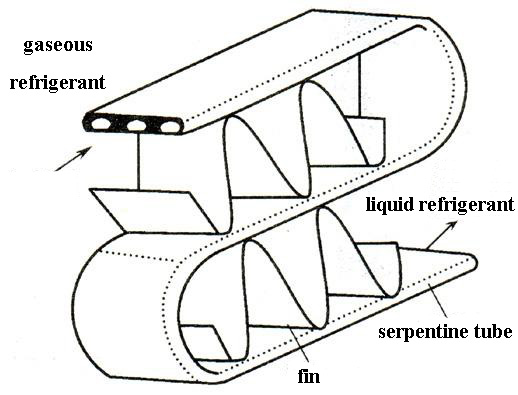

Sketch of serpentine tube core:

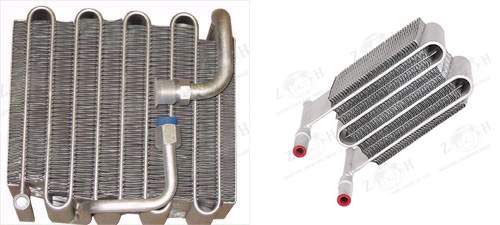

Photo of serpentine multiport flat aluminum tube in condenser and evaporator:


Main technical data of auto serpentine tube bending machine:
Item Data
Suitable multiport flat aluminum tube Width 19-44mm x thickness 4, 5, 6mm
Suitable flat tube reels ID 500mm, OD 1100mm, height 400mm
Core length 250-850mm
Max. bending quantity 50
Pneumatic pressure 0.6MPa
Hydraulic pressure 5MPa
Total motor power 7.5kW
Productivity 220 cores per shift
Machine weight About 3000kg
Machine dimension About 15000 x 2400 x 1900mm

Main configuration of auto serpentine tube bending machine:
-- PLC & HMI: Delta from Taiwan
Note: Serpentine tube bending machine for round tubes are also available.
-- Servo motor and driver: Delta from Taiwan
-- Ball screw: best brand from China
-- Approaching switch: Omron from Japan
-- Circuit breakers and leakage protector: Schneider from China
