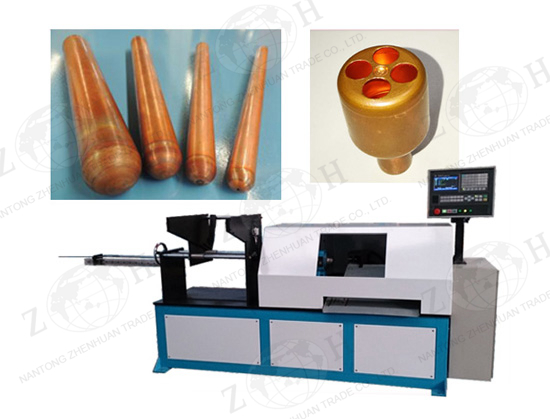

Copper Tube End Spinning Machine




I Description of copper tube end spinning machine

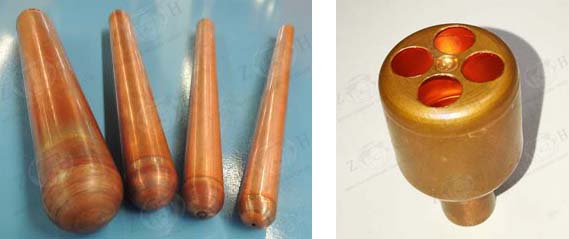

This machine is also called copper tube end closing machine, specially designed for closing copper tube ends by cold spinning method. It can close copper tube ends both flat and spherical:

II Main features of copper tube end spinning machine:
-Self-made CNC control system, special designed; HMI operation
- Manual loading & unloading, auto spinning
- Control system has auto quantity counting function
- Easy & quick changing spinning moulds


III Main technical data of copper tube end spinning machine
No. Item Data
1 Max. tube diameter Φ6-20mm (copper)
2 Max. wall thickness 1.0mm (copper)
3 Suitable tube length 50-300mm
4 Processing methods Cold spinning
5 Average working efficiency 200-400 pcs per hour
6 Control method CNC + servo
7 Operation method Automatic/ manual
8 Loading method Manual
9 Depth error ≤0.25mm
10 Coaxiality error ≤0.1mm
11 Air source 0.5~0.7MPa
12 Hydraulic pressure 7MPa
13 Dimension 2000 x 1000 x 1800mm

Product display
