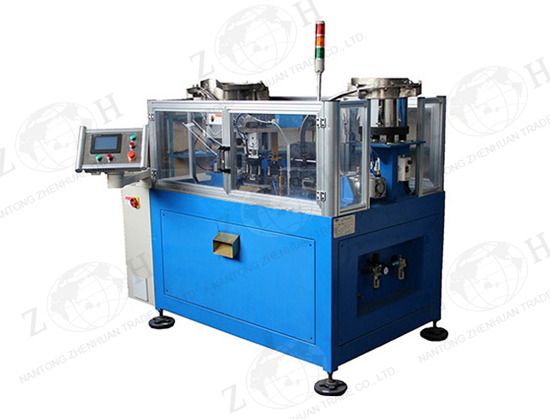

Small U Copper Tube Welding Ring Assembling Machine


Description of small U copper tube welding ring assembling machine:
This machine is specially designed for assembling welding rings onto two ends of small U tubes.
This machine is comprised of frame, graduated turntable, two vibrating trays, pneumatic system and PLC control system.

Main technical data of small U copper tube welding ring assembling machine:

Item Data
Graduated turntable Servo drive, 8 stations
Suitable copper tube diameter Φ9.52mm
Production speed 60~70 pieces per minute
U height error after assembling ±0.1mm
Ring inserting depth 6.0±0.5mm (adjustable)
Tube mouth deformation ratio Less than 3%
Total electric power 2kW

Main configuration of small U copper tube welding ring assembling machine:
-- PLC & HMI: Mitsubishi from Japan
-- Servo motor and driver: Mitsubishi from Japan
-- Circuit breaker: FUJI from Taiwan
-- Buttons: SCHNEIDER from China
-- Pneumatic components: AIRTAC from Taiwan

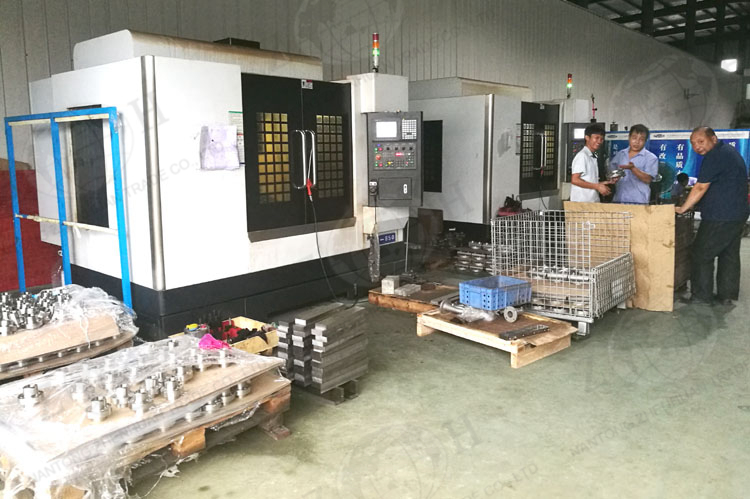

Our facility to assure quality of small U copper tube welding ring assembling machine:
