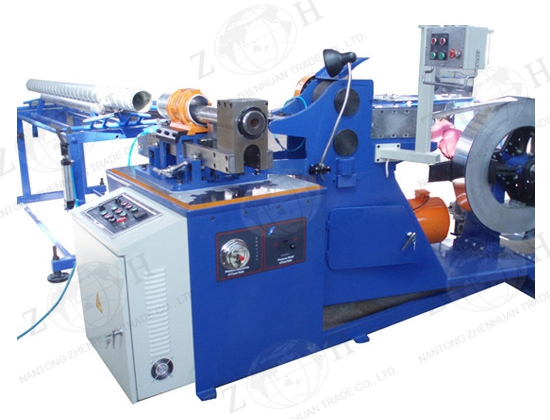

Spiral Duct Machine (Fixed Die)


Description of spiral duct machine ZHTF-1500II (fixed die):
This spiral duct machine is developed by ourselves with technology and working principle similar to Spiro Switzerland.

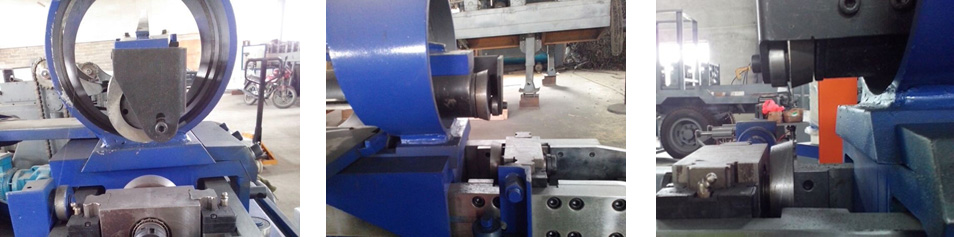

Special roller shear structure:

Main features of spiral duct machine ZHTF-1500II (fixed die):
-- Special aluminum alloy mould, light & long life
-- Round roller shear, without noise and burrs
-- Large diameter range
-- PLC control, convenient operation
-- Auto unloading rack, low labor cost

Main technical data of spiral duct machine ZHTF-1500II (fixed die):

Item Data
Suitable spiral duct diameter range 100~1600mm
Spiral duct length 8000mm
Suitable material  galvanized steel,stainless steel
Suitable material thickness 0.4-1.2mm (can be specially ordered)
Suitable material width 137mm
Material linear feeding speed 1-35m/min
Main driving motor power 11kW
Hydraulic station motor power 4kW
Cooling pump motor power 125W
Material feeding motor power 125W
Control system PLC + HMI
Machine dimension 2900 x 1700 x 1900mm
Machine weight About 2500kg

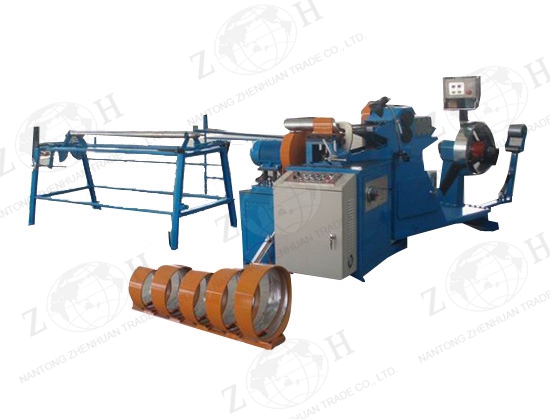

Product display
