Oval Duct Machine

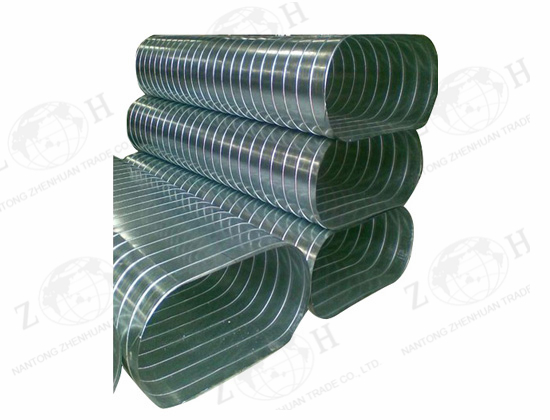

Description of oval duct:
Where space limitations prevent the use of round spiral duct, oval duct is the answer. It is formed from spiral round duct by special oval duct machine.
Main advantage of oval ducts:
-- Better air flow
-- Less hangers
-- Less required space
-- Easier to install
-- Joints easier to seal

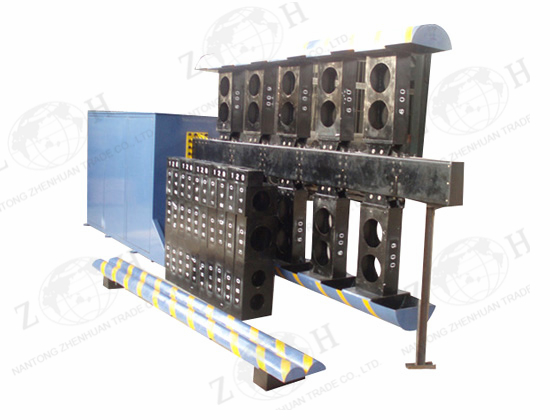

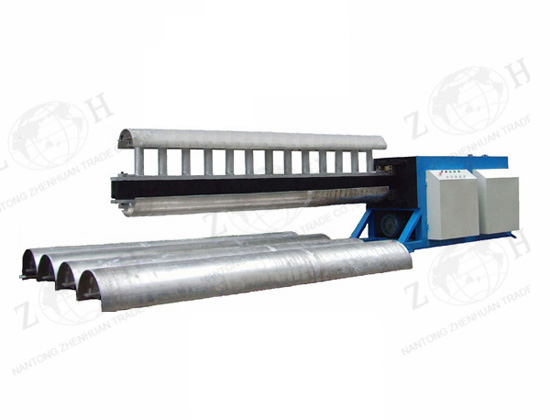

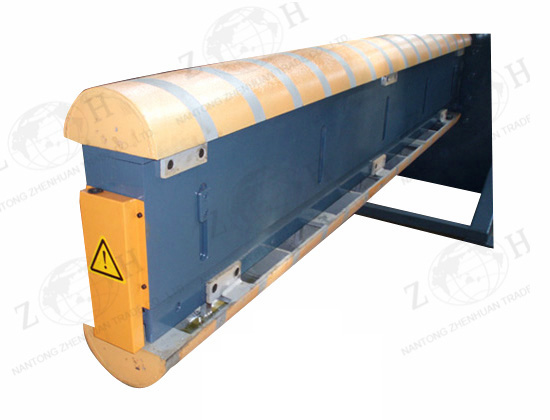

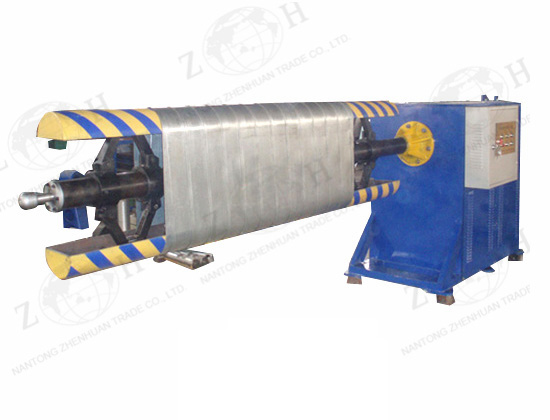

Description of oval duct machine:
Oval duct machine adopts hydraulic power to form spiral round ducts into flat oval shapes, by using different forming dies.

Main technical data of oval duct machine:

Item Data
Blank material Spiral round ducts
Suitable round duct diameter 450~1500mm
Max. duct length 3m
Finished oval duct width 560~2550mm
Finished oval duct height 180~500mm
Hydraulic station pump motor power 7.5kW
Machine dimension 5800 x 1300 x 1500mm
Machine weight About 3.5T

Product display
