Gorelocker Description of gorelocker:
Gorelocker is also called as duct elbow maker, or duct elbow forming machine, for producing round duct elbows for ventilation system. It can form both side edges of sections and seam lock them together to form elbows in any degrees.

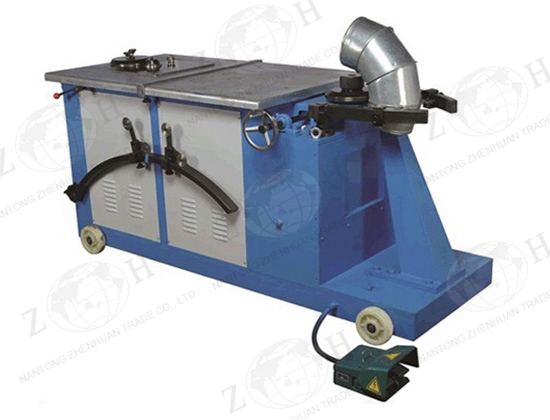

I ZHEM-1000 hydraulic Gorelocker



Item Data
Suitable material Galvanized steel, stainless steel, aluminum, copper
Max. thickness of material Stainless steel 0.4-1.0mm
Galvanized steel 0.4-1.25mm
Aluminum, copper 0.6-1.25mm
Diameter range of elbow 100-1000mm
Max. segment angle 30 degree, 4 pieces for 90 degree elbow
Rotating speed of driver 7rpm
Hydraulic pump motor power 380VAC, 3kW
Dimension 1400 x 800 x 900mm
Weight 750kg

There are several different kinds of gorelockers:

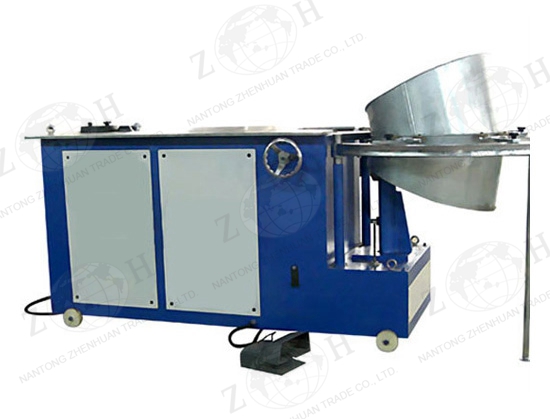

II DCP-1000 mechanical Gorelocker:
Item Data
Suitable material Galvanized steel, stainless steel, aluminum, copper
Max. thickness of material Stainless steel 0.4-1.0mm
Galvanized steel 0.4-1.25mm
Aluminum, copper 0.6-1.25mm
Diameter range of elbow 125-1000mm
Max. segment angle 30 degree, 4 pieces for 90 degree elbow
Rotating speed of driver 7rpm
Driving motor power 380VAC, 1.5kW x 2
Dimension 1400 x 800 x 900mm
Weight 750kg

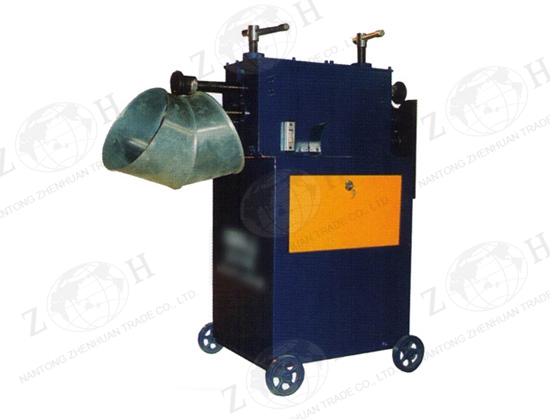

III DCP-700 vertical mechanical Gorelocker
Item Data
Suitable material Galvanized steel, stainless steel
Max. thickness of material 1.2mm
Diameter range of elbow 100-700mm
Rotating speed of driver 4.5rpm
Driving motor power 380VAC, 1.5kW
Dimension 1200 x 800 x 950mm
Weight About 250kg

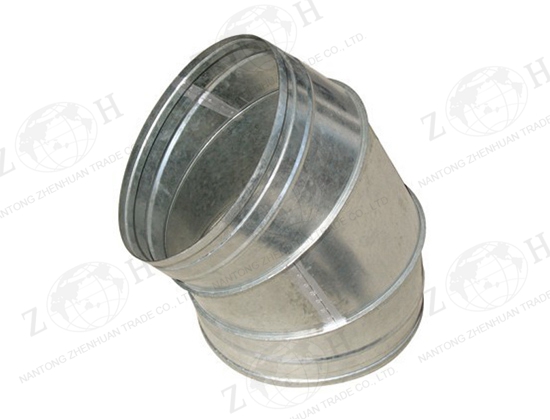

Photo of duct elbow made by gorelocker:
