Plasma Cutting Machine

Description plasma cutting machine for air duct connections:
This kind of table type plasma cutting machine is special for HVAC duct processing purpose. It is in high speed and high precision, suitable for cutting thin blank sheets in any different shapes for various ventilation duct connections.
It is equipped with special software for this blank sheet cutting purpse, suitable for both round and square ducts. And a nesting software is optional for saving raw materials.

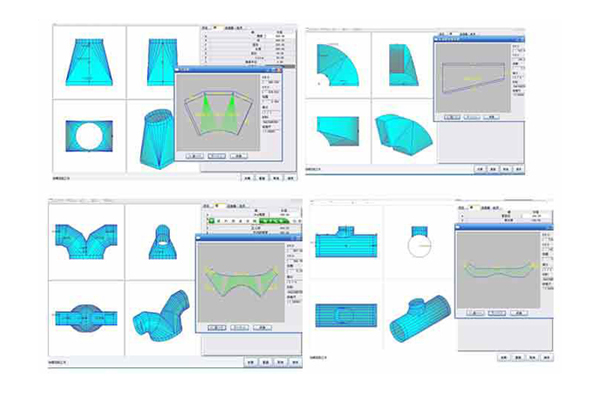

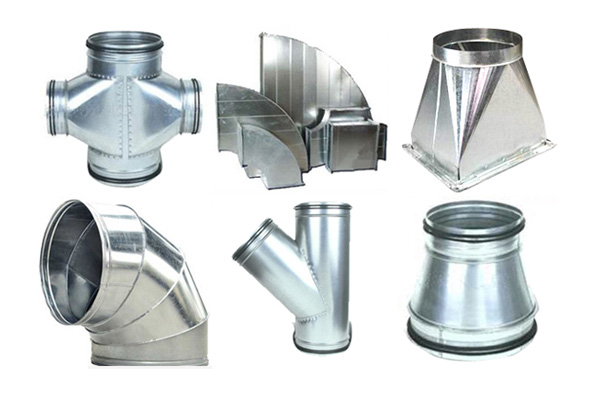

Special software in the plasma cutting machine: Typical air duct connections:



Main technical data of plasma cutting machine for air duct connections:
Item Data
Table width 2000mm
Effective cutting width 1500mm
Table length 4000mm
Effective cutting length 3000mm
Equipped plasma power Max. 600 Hyperthem from USA
Cutting thickness range 0.5-3mm
Max. cutting speed 15m/min
Positioning accuracy +/-0.2mm
Repositioning accuracy +/-0.1mm
Movement driving motor power 3kW

Product display
