TDC Flange Machine

Description of TDC flange machine:

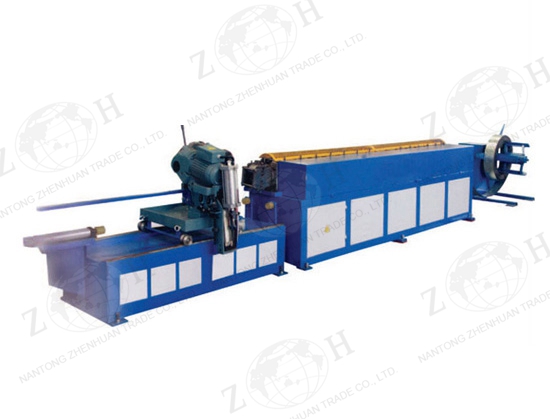

TDC flange machine is specially designed for roll forming TDC flanges used in HVAC square/rectangular ventilation duct system.
This machine can automatically form and cut TDC flanges, flying cutting, non-stop, high productivity.
Usually one machine can be used for producing only one TDC flanges. It is difficult to change forming rollers for another size TDC flanges.
This machine will be designed based on your required TDC flange profile.
|TDC flange machine|TDC flange machine|TDC flange machine|TDC flange machine|TDC flange machine|

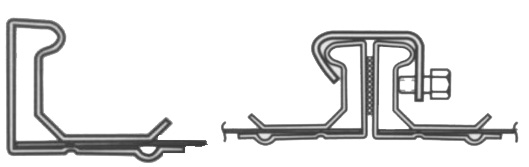

TDC flange working sketch:

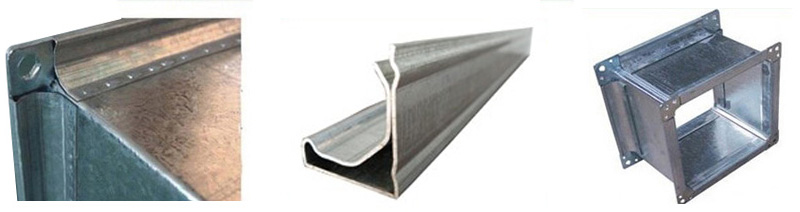

Photo of TDC flanged ducts:

Main technical data of TDC flange machine:
Item Data
TDC flange size 30mm height (or as required)
Suitable material Carbon steel, 0.4-1.2mm thick
Main driving motor power 5.5kW
Forming roller stations 14 stations
Diameter of roller shaft 40mm
Distance between stations 250mm
Material of forming rollers GCr15, quenched HRC 58-62, rigid chrome coated
Cutting method Fly saw cutting (non-stop)
Machine dimension 6000 x 1800 x 1500mm
Machine weight About 3000kg
