Hanger Hook Machine



Description of hanger hook machine:

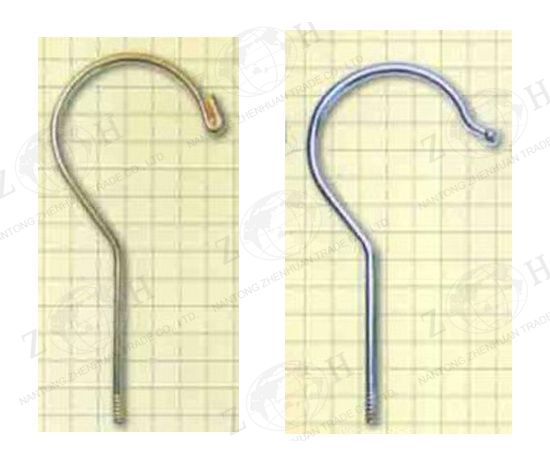

There are different hanger hooks for plastic and wooden clothes hangers, such as bent end, heading end, threaded end or pressed end. And there are round wire hanger hooks and flat wire hanger hooks also.

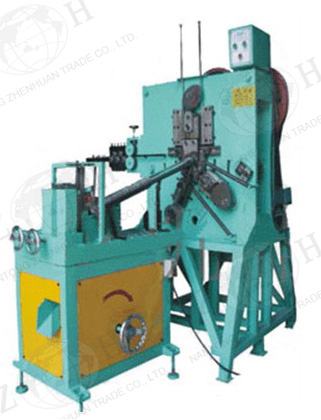

Hanger hook machine usually combines the function of hook bending and hook end threading together. Generally one end is threaded and the other end has two shapes: bent and cold headed. Different shapes and different heading treatment can be achieved by changing moulds.

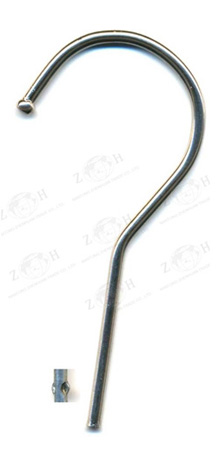

When the hook end likes below photo, then there need a separate eccentric press plus pressing die to form such end. This process will be done separately after hook is bent:



Main technical data of hanger hook machine:
Item HHBM30 HHBM43
Suitable material Galvanized steel wire, carbon steel wire
Wire diameter 1.5-3.0mm 2-5mm
Max. total wire length 160mm




160mm




Production speed 40-50pcs/min 25-30pcs/min
Main motor power 1.5kW 2.2kW
Dimension 1360 x 1070 x 1980mm
Weight about 400kg


Main technical data of threading machine:
Item HFR30 HFR43
Suitable material Galvanized steel wire, carbon steel wire
Wire diameter 2-3.0mm 2-4.3mm
Production speed 25-30 pcs/min 25-30pcs/min
Main motor power 2.2kW 2.2kW
Dimension 1480 x 1000 x 680mm
Weight about 200kg

Product display
