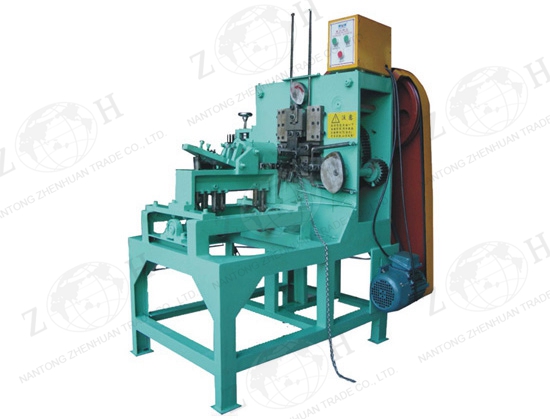

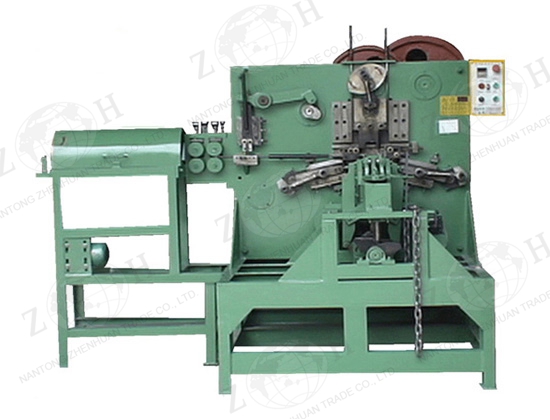

Chain Making Machine




Description of chain making machine:
This machine is for making various kinds of chains in different wire diameter & link pitch, by changing different moulds.

Main features of chain making machine:
-- Auto feeding & straightening, auto forming
-- Digital control, quantity of links can be pre-set
-- Easy operation, convenient mould change
-- Cheap cost, quickly gain your market

Main technical data of chain making machine:

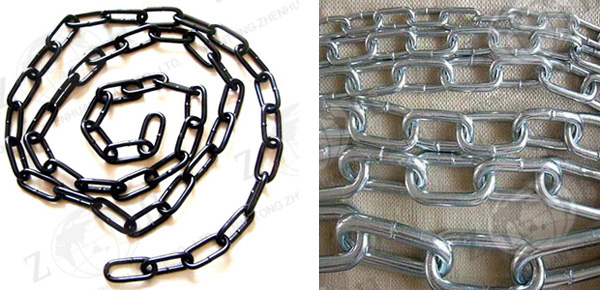

Photos of chain samples made by chain making machines:


Main technical data of chain making machine:
Code Wire diameter (mm) Max. single link perimeter (mm) Production speed (links per minute) Motor power (kW) Feeding Rollers
CBM4 1.5-4.0 100 40-50 0.75 1 set
CBM6 2.0-6.0 120 40-50 1.5 2 sets
CBM8 4.0-8.0 150 35-40 2.2 2 sets
CBM10 5.0-10.0 160 25-35 3.0 2 sets
Note: Speical sizes can be ordered. Above data are for forming machines only.

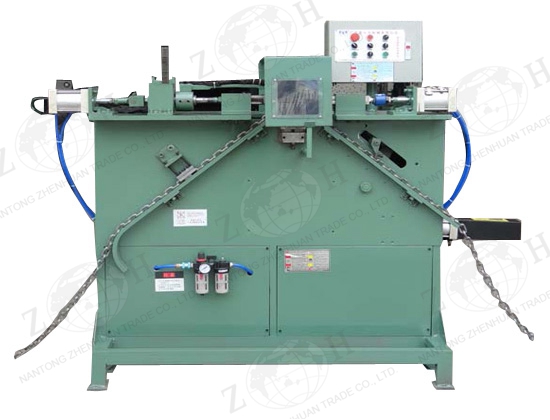

If you want to weld chains, separate chain welding machine is needed.

Product display
