Key Ring Machine




Description of key ring machine:

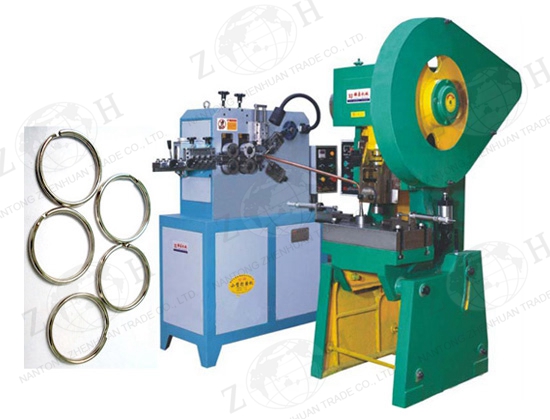

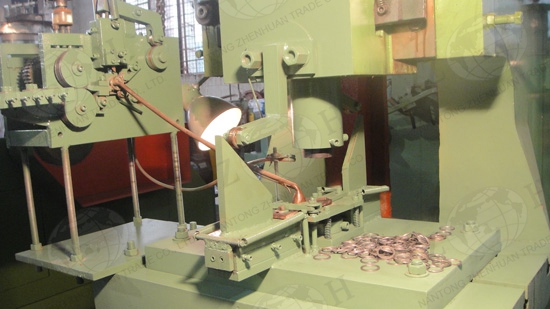

This machine is comprised of one key ring forming machine and one special improved punching press. The two machines are combined together for producing flat key ring full automatically.

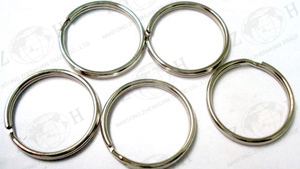

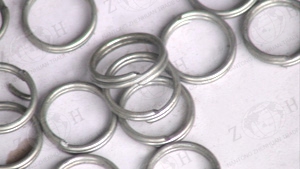

There are two kind of key rings. One is pressed flat and another is unpressed.




Main features of key ring machine:
-- Automatic mechanical forming
-- Gears are made by 40Cr, tempered and quenched, HRC 52-55, shafts are made by 45# steel, tempered
-- Feeding & straightening and forming rollers are made by good steel alloy, heat treated HRC 58-62




Main technical data of key ring machine:
Item Data
Suitable key ring wire Carbon steel, stainless steel
Suitable wire diameter 1.0-3.0mm
Finished key ring diameter 15-40mm
Production speed 35-45 pcs/min
Main driven motor power 1.5kW (for wire bending machine only)
Eccentric press capacity 25T

Product display
