CNC 3D Wire Bending Machine




Description of CNC wire bending machine:
This is an automatic wire bending machine for bending 3D wire products. You can select bending shapes from CNC control system and you can save new bending shapes into the control system also




Main technical data of CNC wire bending machine:
-- High speed, each bending process takes 1.0-1.5 seconds
-- Heavy duty bending capacity for wire gauge up to 10mm (customerized)
-- Equipped with servo motor and  air compressor as driven power to instead of hydraulic pressure, to keep machine clear and easy to maintain.
-- With friendly operation interface, easy to progamme, push the button to achieve completed complex bending process
-- With CNC control system, AC servo motor driven, ensuring production has same good quality.





Main technical data of CNC 3D wire bending machine:
Item Data
NT80-7A NT100-7A
Suitable wire diameter 600N/mm2 Φ2-Φ8mm Φ4-Φ10mm
1200 N/mm2 Φ2-Φ5mm Φ4-Φ6mm
1900 N/mm2 Φ2-Φ4mm Φ4-Φ5mm
Feeding wheels 3 units 4 units
Wire bending angle changing limitless limitless
Platform lifting height +25mm to -120mm +25mm to -120mm
Twisting head lifting height +25mm to -180mm +25mm to -180mm
Lifting speed 15m/min 15m/min
Distance between cutting shaft and knuckle head 105-210mm (fixed) 105-405mm, adjustable
Distance between knuckle head and machine body 400-700mm(fixed) 400-900mm, adjustable
CNC axis quantity 7 axis 7 axis
Machine dimension 3500 x 1200 x 1500mm 3500 x 1070 x 1200mm
Machine weight About 3500kg About 4800kg

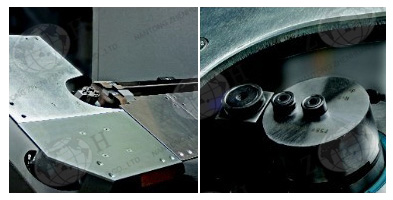

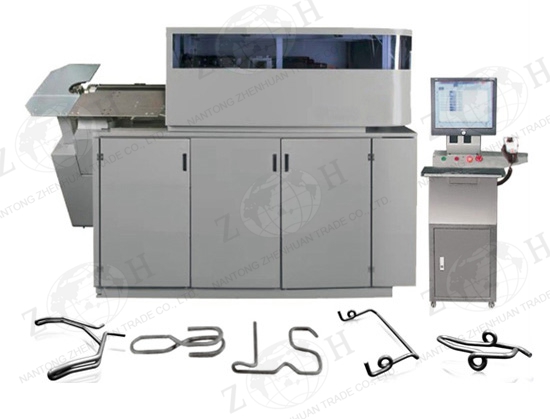

Product display
