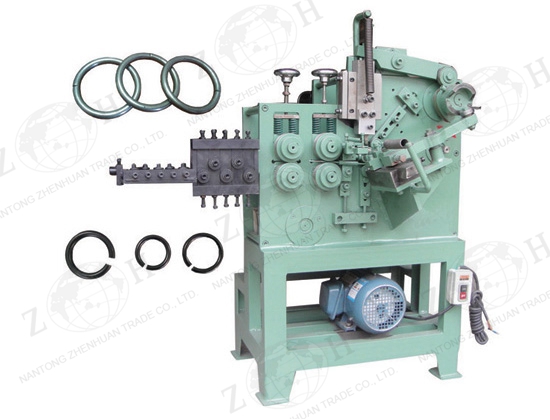

Open Close Ring Making Machine


Description of close / open ring making machine:
This machine is for automatically producing small round rings which is close or a little open and flat in joint. One machine can produce different ring sizes in different wire diameter.
This machine has one function to make the joint flat and very closed!

Main technical data of close / open ring making machine:

Item Data
Machine code QZ-5
Suitable wire Normal steel wire, galvanized steel wire
Suitable wire diameter 1.6-6.0mm
Finished ring diameter 20-76mm
Production speed 50-70 pcs/min
Main driving motor power 1.1kW
Machine dimension About 1180 x 760 x 1200mm
Machine weight About 500kg

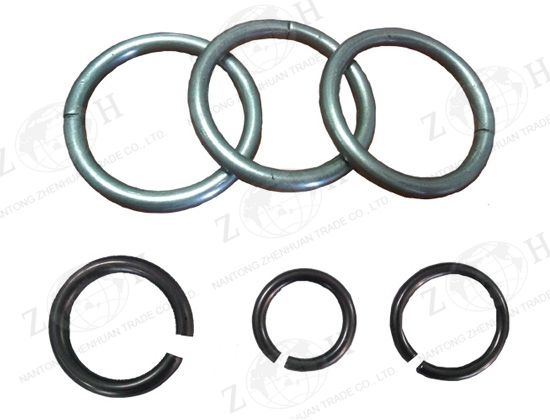

Photo of open /close rings:

Product display
