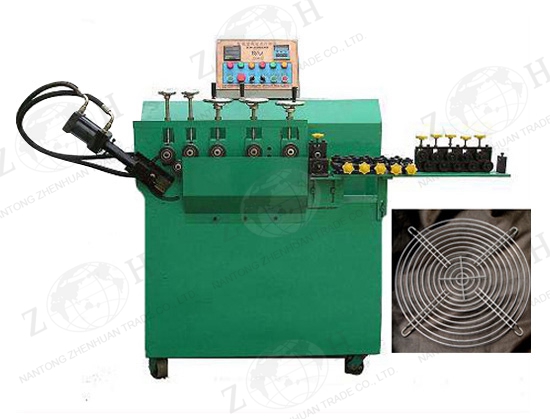

Ring Making Machine


Description of ring making machine:
This machine is suitable for forming steel wire, iron wire, stainless steel wire and other nonfeffous metal wires (round, square or flat) into ring, half ring or any arcs.

Main features of ring making machine:
-- Servo motor feeding wire, high precision and high speed
-- Full hydraulic drive, stepless speed changing
-- Digital display plus encoder for setting length and cutting automatically
-- Quantity can be pre-set and machine can stop automatically when accomplishs the quantity, counter imported from Korea
-- One small hydraulic motor for all driving & cutting, saving electric consumption.
-- Gears are made by 40Cr, adjusted and quenched, HRC 52-55, shafts are made by 45# steel, hardened & tempered
-- Feeding & straightening and forming rollers are made by good steel alloy, heat treated HRC 58-62

Main technical data of ring making machine:

Item DQ-06 DQ-08
Suitable material Carbon steel, stainless steel
Suitable wire diameter 1~6mm 2-8mm
Suitable ring diameter 35-750mm 60-1000mm
Finished ring diameter tolerance +/-0.2mm
Linear feeding speed 40m/min
Main driving motor power Servo motor 2.2kW
Power supply 220V, single phase
Productivity More than 20 pcs/min
Machine dimension 1350 x 900 x 1450mm 1980 x 900 x 1670mm
Machine weight 580kg 780kg

Product display
