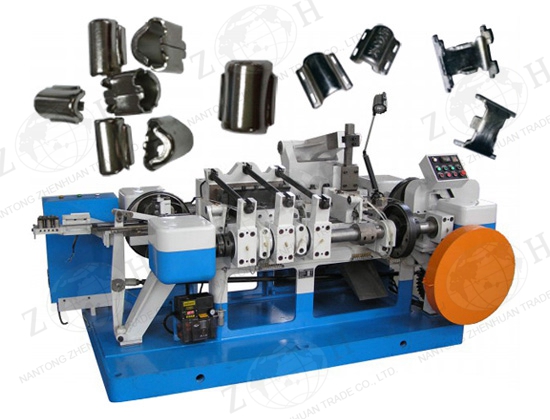

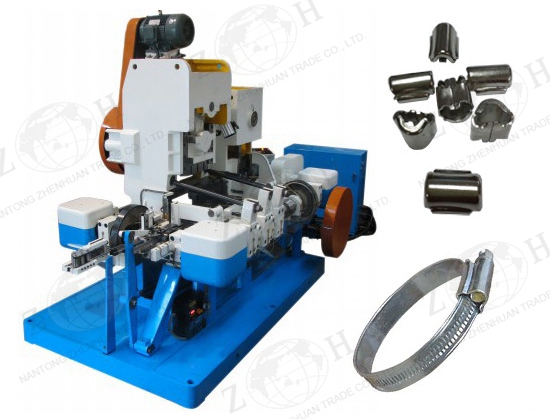

Hose Clamp Head Making Machine


Description of hose clamp head making machine:
This machine is our state-of-the-art design, combining punching, pressing and bending together, full automatically producing hose clamp heads in very high speed.
This machine is in horizontal and so it can combine more functions together, comparing to conventional punching press.

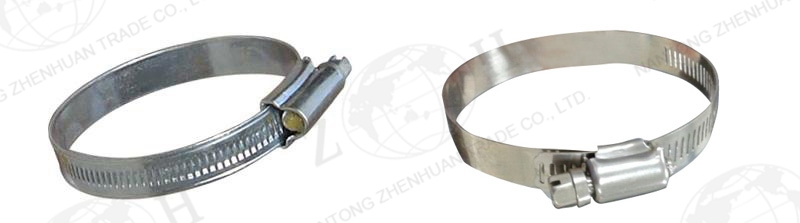

Photo of hose clamp head and similar products:


Main technical data of hose clamp head making machine:
Item Data
Suitable material SS and carbon steel
Suitable strip width Max. 50mm
Suitable strip thickness Max. 2mm
Max. strip feeding speed 0-380m/min
Production speed 30-130 pcs/min
Punching & pressing force 200kN
Main driving motor power 5.5kW
Power supply 380V, 3phase, 50Hz
Machine dimension 2790 x 1830 x 1200mm
Machine weight About 2800kg

Product display
