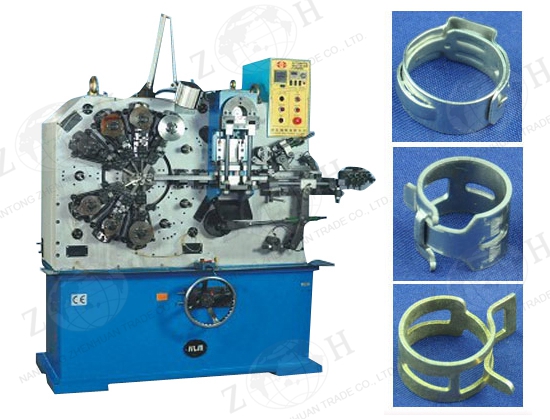

Hose Clamp Machine


Description of hose clamp machine:
Hose clamp machine is our state-of-the-art design for automatically producing wire/plate products in complex shapes, not only various hose clamps.
The machine combines leveling, punching, bending and forming together, much higher efficient than conventional press forming.
Bending slides can be designed to be 360° adjustable (optional).

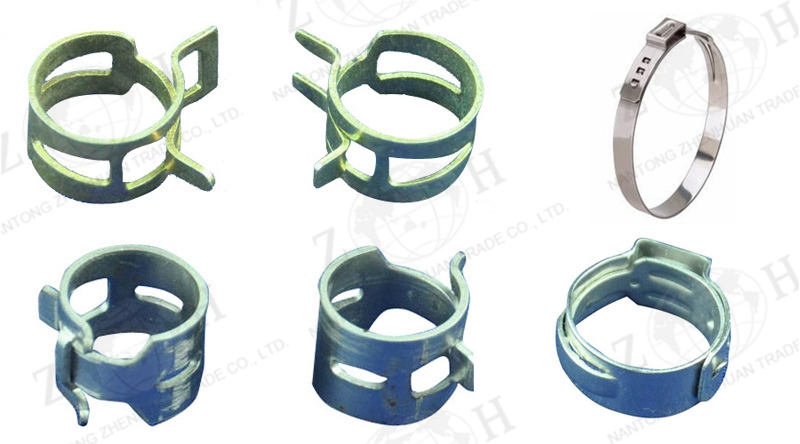

Typical hose clamps can be produced:

II Main advantages comparing with conventional press forming:
2.1 Saving material: conventional pressing machine needs wider strips for automatic production; This machine uses exact wide strip for production.
2.2 High efficiency: capability of one automatic machine is equal to that of seven pressing machines at least. And so energy consumption is also saved.
2.3 More stable processing quality because of continuous processing automatically.
2.4 Cheaper mould cost: one combined mould can replace several moulds on several pressing machines; Mould frames are also saved.
2.5 Automatic lubricating, less wearing, suitable for mass production.

III Main technical data of hose clamp machine

Item Data
Machine code ZHLJ-26
Suitable carbon steel wire gauge Φ0.6~2.5mm (3mm)
Suitable steel strip width 30mm
Suitable steel strip thickness 0.3~1.2mm
Max. feeding length per stroke 200mm (250mm)
Feeding precision +/-0.005mm
Punching force of punching head 10 ton
Total motor power 3.7kW
Production speed 200 pcs/min
Machine dimension About 1900 x 990 x 1900mm
Machine weight About 2100kg
Linear guide ABBA from Taiwan
Servo motor and inverter TECO from Taiwan
Main bearings SKF from Japan

Product display
