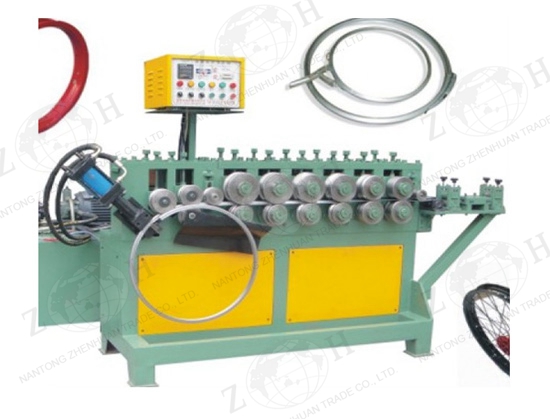

Barrel Hoop Machine






Description of barrel hoop machine:
This machine is specially designed for forming circle products, such as barrel hoops, wheel rims, etc. The raw material is steel strip coils in a certain width.
The machine adopts hydraulic bending and cutting, different diameter can be easily adjusted.

Main technical data of barrel hoop machine:

Item

Data

Suitable material

Stainless steel, carbon steel

Suitable steel strip width

15~52mm

Suitable steel strip thickness

0.8-2.0mm

Suitable barrel hoop diameter

60-1000mm

Strip feeding speed

4m/min

Roll forming stations

5~6 steps

Forming roller material

GCr15, quenched HRC 58-62

Main driving motor power

4kW

Power supply

380V, 3phase, 50Hz


Product display
