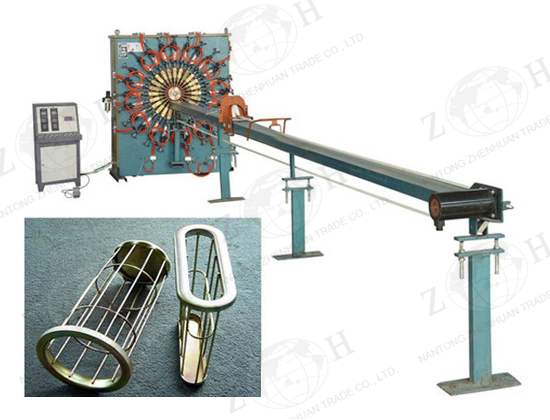

Dust Collector Cage Welding Machine

Description of dust collector cage welding machine:
This welding machine is for producing cages used in dust collector bags. There are round dust collector cage and oval dust collector cage. We can provide machines for both.

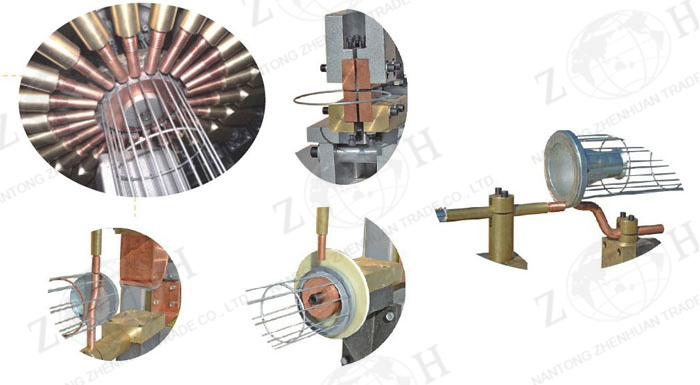

For producing dust collector bag cages, there need not only bag cage welding machine, but also several other machines:
1) Dust collector bag cage welding machine
2)  Round ring bending machine
3)  Butt welding machine for round ring
4)  Spot welding machine for top cap of dust collector bag cage
5)  Spot welding machine for welding linking ring used in multi-section dust collector bag cages
6)  Spot welding machine for bottom cap of dust collector bag cage
7)  Spot welding machine for welding Venturi tube onto dust collector bag cage


Technical data of dust collector cage welding machine:
Item Data
Suitable cage diameter range Φ100-160mm or Φ100-200mm
Suitable cage length 7.5m (can be specially ordered)
Suitable wire gauge 2-6mm (can be specially ordered)
Quantity of longitudinal wire 8, 10, 12, 16, 20, 24 (optional 14, 18, 22)
Pitch of ring position No limited
Welding transformer capacity 80kVA x 2
Rated input electric power 380V, 3-phase, 50/60Hz
Rated load duty cycle 50%
Primary welding current Max. 500A (one-time welding), 254A (two-time welding), based on quantity of longitudinal wires
Cooling method Air cooling
Compressed air consumption About 0.3m3/min
Air pressure needed 0.7MPa
Dimension of main machine About 1200 x 1500 x 1500mm
Weight of main machine About 1000kg

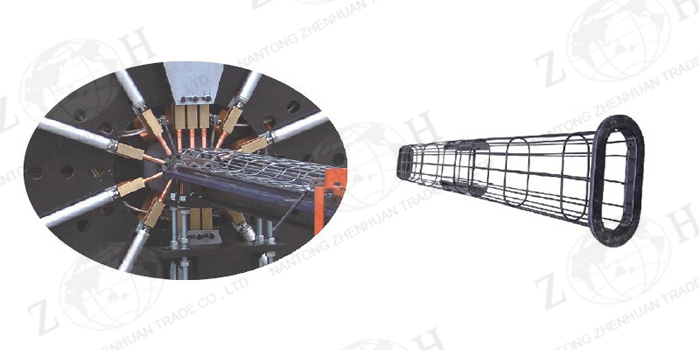

Oval dust collector cage welding machine:

Product display
