Fence Mesh Welding Machine



Description of fence mesh welding machine:
This machine is designed for welding fence mesh, which is used in rail, expressway, bridge, warehouse and buildings, etc.
This machine is comprised of wire pay-off stands, wire straightening device, welding head, woof wire feeding device, mesh pulling device and unloading rack.
According to different requirements, woof wire feeding can be continuous by wire reel, or automatic by wire rods.


Main features of fence mesh welding machine:
-- PLC control, full automatic
-- Space between longitudes is pre-adjusted before welding
-- Space between each woof can be preset in the PLC

Main technical data of fence mesh welding machine:
Item Data
Suitable wire diameter 2.5-6mm
Welding aperture 25x25mm ~ 200x200mm
Width of fence mesh Max. 2500mm
Length of fence mesh Max. 5000mm
Number of welding spots 48
Welding speed 30 times/min
Towing motor power 4.0kW
Welding transformer capacity 480kVA
PLC & inverter World famous brand
Machine dimension 8480 x 3160 x 1700mm (loaded in one 20’ container)
Machine weight About 4.2T

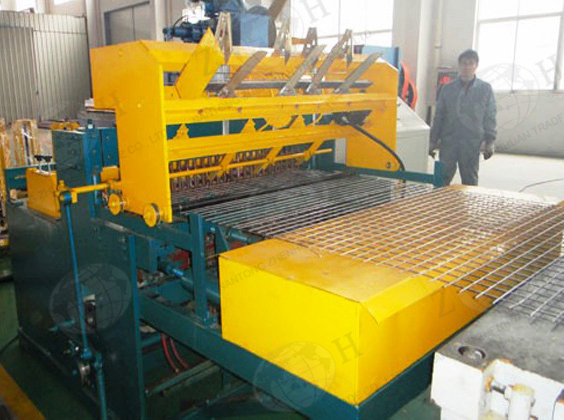

Product display
