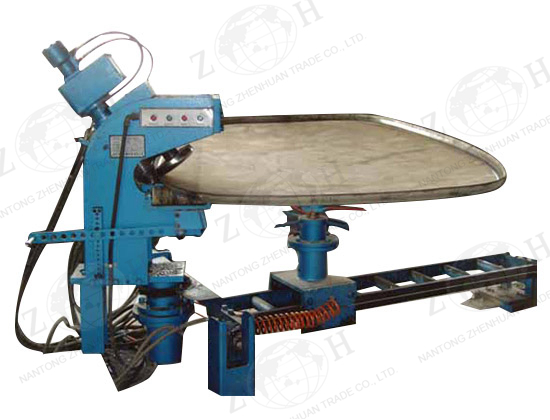

Oval Tank Head Flanging Machine


Description of oval tank head flanging machine:

This machine is specially designed for flanging tank heads used in liquid tank trucks.
This machine adopts copying system which is suitable for flanging oval tank heads or any other special shaped tank heads.




Buildup of the machine of oval tank head flanging machine:
--Main flanging head
-- Sliding trolley
-- Hydraulic system
-- Copying system
-- Vacuum system

Main technical data of oval tank head flanging machine:

Item Data
Suitable tank head diameter 850~3000mm
Total flanging height 50mm
Suitable material thickness Carbon steel 2-8mm
Stainless steel 2.5-6mm
Linear flanging speed 3~8m/min
Production speed Not more than 25minutes per workpiece at perimeter about 6.5m
Total power 12kW
Machine dimension 3800m×1300mm×1400mm

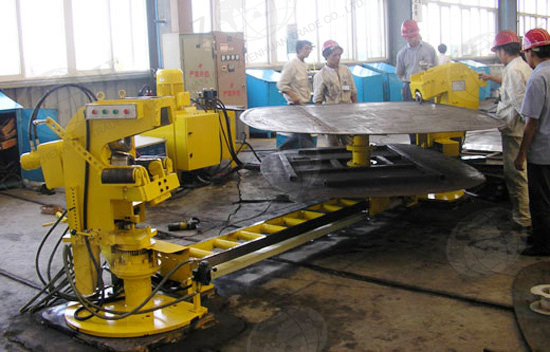

Product display
