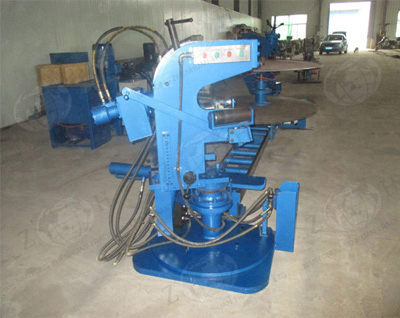

Irregular tank head shearing and flanging machine


Description of irregular tank head shearing and flanging machine
Adopting spinning principle, this irregular tank head shearing and flanging machine will make blank work piece from drum machine into flat-bottom end, dish end, and single-direction end, etc. This irregular tank head shearing and flanging machine is equipped with an online roller cutting device which is suitable for aluminum tank heads and for those customers without CNC cutting machine.

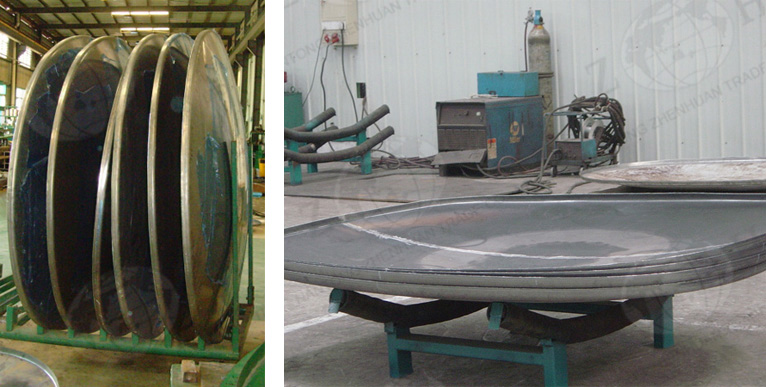

Finished product by irregular tank head shearing and flanging machine


Main technical data of irregular tank head shearing and flanging machine
NO. Item Technical data
1 Diameter of finished dish end 850-3000mm
2 Material thickness max. 8mm (carbon steel)
max.6mm (stainless steel)
max. 12mm (aluminum steel)
3 Height of flange (6mm thickness) 50mm
4 Flange R 20mm
5 Min. R of work piece R300mm
6 Speed 3-8m/min
7 Main machine size 4800x1300x1400mm (L x W x H)
8 Total power 12kW
9 Suitable temperature -10℃~47.5℃
10 Relative Humidity max. 90%
11 Voltage 380V, 3P, 50Hz, it can be customized

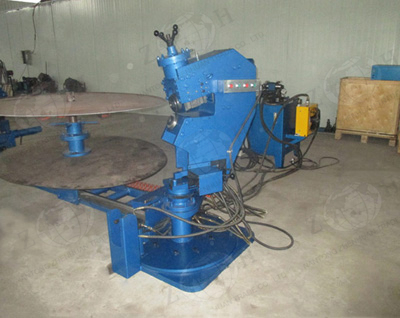

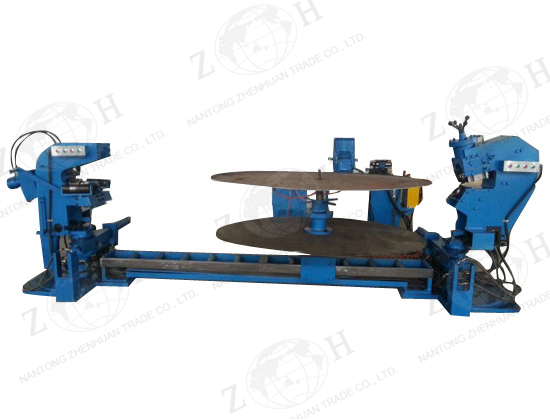

Product display
