Vacuum Kneader


Description of vacuum kneader:
There are different kinds of vacuum kneaders for different purpose, such as for hot melt adhesive sealant, silicone rubber, CMC, battery, ink, dye, pharmacy, resin, plastics and cosmetic, etc.



Vacuum kneader is a kind of ideal high-performance equipment for mixing and kneading high viscosity and super high viscosity materials.
Vacuum kneader is heated by heating oil circulation, electric or steam heating, water cooling.




Main technical data of vacuum kneader
Item NHZ-500 NHZ-1000 NHZ-1500 NHZ-3000
Whole volume                   (L) 600 1200 1500 3300
Working volume                 (L) 400 800 1000 2200
Power of kneading motor        (kW) 37 90 132 315
Blade type Double sigma blades
Material of blade Cast steel, surface covered SUS304
Material of shaft carbon steel, tempered & hardened
Revolution of blade (rpm) front 0-38 0-35 0-35 0-32
rear 0-26 0-24 0-24 0-22
Distance between blade and trough    (mm) ≤3 ≤3 ≤4 ≤5
Distance between blade and trough end (mm) ≤3 ≤3 ≤4 ≤5
Packing of shaft PTFE
Heating method steam≤0.8MPa or electric heating
Discharging way Tilt trough by hydraulic system
Angle of tilting trough Approx.95°
Explosion rupture disk device DN100 DN150 DN150 DN200
Lid opening Hydraulic driven
Seal of lid viton
Hydraulic pump motor power     (kW) 2.2 4 4 5.5
Ultimate vacuity                (MPa) -0.095
Compressed air flow          (m3/min) 2 3 4.5 6
Dimension  (mm) L 2800 3650 4000 5000
W 1800 2150 2300 2750
H 1800 2275 2400
2900


We can specially design any kind kneader/vacuum kneaders/CMC kneader based on your special requirements.

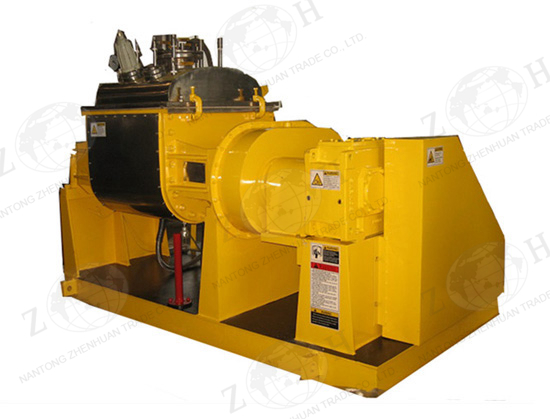

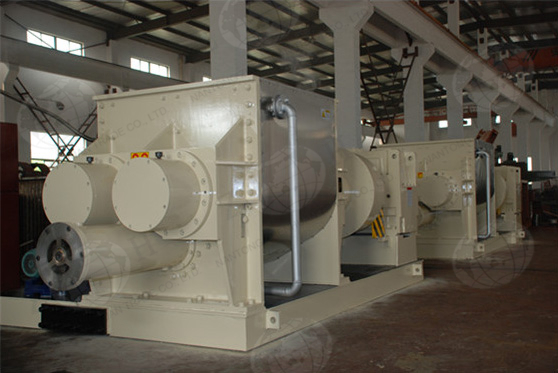

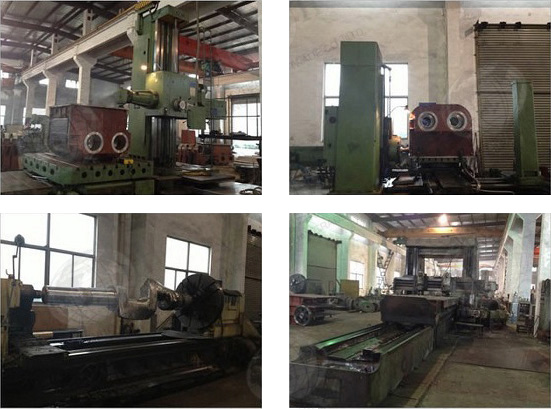

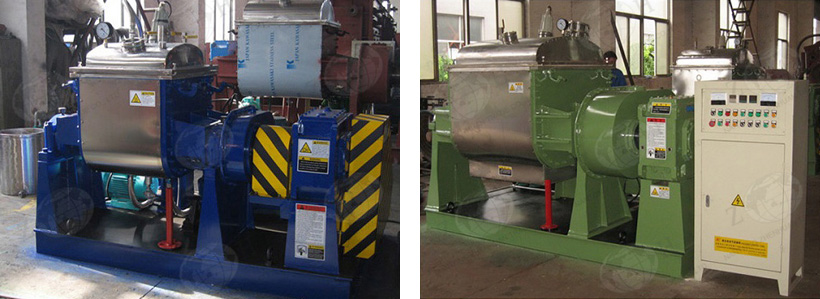

Product display
