Hydraulic Ram Pump



Features of hydraulic ram pumps:
Water hammer is a natural phenomenon. And the water pumps that created by water hammer have hundreds of years history. These pump devices can use the hydrodynamic force in low level to deliver high head water. As a tool of lifting with no consumption of electricity, oil and other traditional energy sources, it is very appropriate for irrigation and supply in mountain and semi-mountain areas with power shortage. And in areas with rich water resources, it can be used for power generation through water lift.
Its lift efficiency is much higher and its property and status are more stable. It can adjust hostile environment and bad conditions, and it can works without supervision and energy consumption for days and years. As a result, it is really environmental friendly and low carbon operation, leading to practical and profound significance of environment and energy.

Advantages of hydraulic ram pumps:
-- Making use of a renewable energy source, no consumption of traditional fuels, no pollution.
-- High efficiency and high lift, more than 30 years service life
-- Automatic, continuous operation, no supervision
-- Simple and reliable, low maintenance requirement

Applications of hydraulic ram pumps:
--Irrigation for mountain, semi-mountain, hilly countries
-- Irrigation for areas near reservoir, river and stream
-- Providing drinking water for people and livestock at mountain area
-- Supplying water for landscapes and fountains
-- Store energy for power generation
-- Greening barren hills

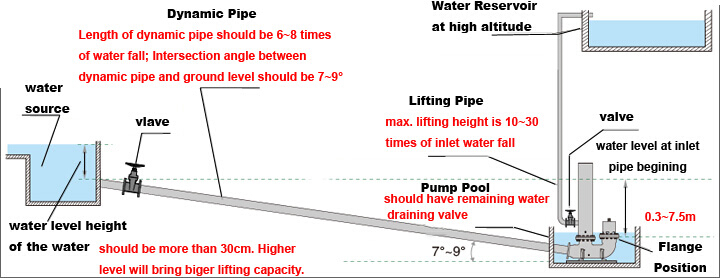

Working Principle of Hydraulic Ram Pump:



Main technical data of typical hydraulic ram pump:
Item Z315L Z315T
Material of pump body Aluminum alloy Nodular cast iron
Material of cushion cylinder Aluminum alloy Seamless tube
Dynamic pipe size 3”  (89x5mm)
Pumping-up pipe size 1.5”  (45x3.5mm)
Dimension 608×220×757mm
Weight 30kg 65kg
Inlet water fall 0.3~7.5m
Inlet water flow 4~30m3/h
Lifting height Inlet water fall x (2~30)m
Optimal dynamic pipe length Inlet water fall x 8m
Best intersection angle between dynamic pipe and ground About 7°
Lifting height and capacity of typical hydraulic ram pump Z315 series:

Water fall of source (m) 0.3 0.5 1.5 2.5 3.5 4.5 5.5 6.5 7.5
Assuring flow (m3/h) 4 5 11 15 20 26 30 30 30
Lifting capacity @ 3m lift (m3/h) 0.32 0.67 4.40 - - - - - -
Lifting capacity @ 5m lift (m3/h) 0.19 0.40 2.64 6.00 - - - - -
Lifting capacity @ 10m lift (m3/h) 0.10 0.20 1.32 3.00 5.60 9.36 13.20 - -
Lifting capacity @15m lift (m3/h) - - 0.88 2.00 3.73 6.24 8.80 10.40 12.00
Lifting capacity @ 20m lift (m3/h) - - 0.66 1.50 2.80 4.68 6.60 7.80 9.00
Lifting capacity @ 25m lift (m3/h) - - 0.53 1.20 2.24 3.74 5.28 6.24 7.20
Lifting capacity @ 30m lift (m3/h) - - 0.44 1.00 1.87 3.12 4.40 5.20 6.00
Lifting capacity @ 35m lift (m3/h) - - 0.38 0.86 1.60 2.67 3.77 4.46 5.14
Lifting capacity @ 40m lift (m3/h) - - 0.33 0.75 1.40 2.34 3.30 3.90 4.50
Lifting capacity @ 45m lift (m3/h) - - 0.29 0.67 1.24 2.08 2.93 3.47 4.00
Lifting capacity @ 50m lift (m3/h) - - - 0.60 1.12 1.87 2.64 3.12 3.60
Lifting capacity @ 55m lift (m3/h) - - - 0.55 1.02 1.70 2.40 2.84 3.27
Lifting capacity @ 60m lift (m3/h) - - - 0.50 0.93 1.56 2.20 2.60 3.00
Lifting capacity @ 65m lift (m3/h) - - - 0.46 0.86 1.44 2.03 2.40 2.77
Lifting capacity @ 70m lift (m3/h) - - - 0.43 0.80 1.34 1.89 2.23 2.57
Lifting capacity @ 75m lift (m3/h) - - - 0.40 0.75 1.25 1.76 2.08 2.40
Lifting capacity @ 80m lift (m3/h) - - - - 0.70 1.17 1.65 1.95 2.25
Lifting capacity @ 85m lift (m3/h) - - - - 0.66 1.10 1.55 1.84 2.12
Lifting capacity @ 90m lift (m3/h) - - - - 0.62 1.04 1.47 1.73 2.00
Lifting capacity @ 95m lift (m3/h) - - - - 0.59 0.99 1.39 1.64 1.89

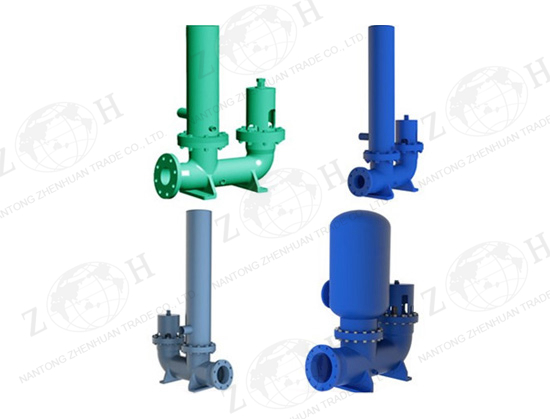

Kindly please let me your detailed water source information and your detailed requirements and then we will provide you best suggestions. Product display
