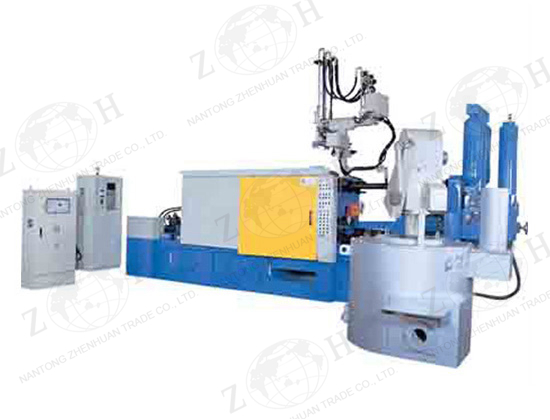

Description of die casting machine:
There are two kinds: hot chamber die casting machine and cold chamber die casting machine, for different zinc and aluminum casting purpose.

Main features of  hot chamber die casting machine:
-- Nozzle, gooseneck and melting pot are especially durable since they are made of hot-work iron or steel.
-- Nozzle and goose neck are heated by electric heater, safety and durable. This keeps temperature steady and avoids jamming of nozzle resulting defective products.
-- Auto central lubricating system, directly setting up times of toggle turning lubrication.
-- Using hydraulic parts imported from famous manufacturers in the world.
-- Special double proportional control system; Using two sets of flux/pressure proportion valves separately, thus making the speed of every actions and pressure to be adjusted freely.
-- Electronic firing oil burner is from Japan. The adjustment of fire is stable and in high safety.
-- Water-cooling type oil cooler with high cooling efficiency to keep certain oil temperature and viscidity.

Main technical data of hot chamber die casting machines:

ITEM Unit ZL-50/60 ZL-90 ZL-130 ZL-200 ZL-280 ZL-400
Locking Fore KN 600 900 1300 2000 2800 4000
Die Stroke mm 225 268 310 400 500 550
Die Thickness (Min-Max) KN 50 60 70 110 130 180
Ejection Stroke (Max) mm 65 65 75 100 128 120
Die Thickness (Max) mm 120-325 140-350 170-460 250-560 220-650 300-750
Tie Bar Diameter mm 50 60 75 90 100 130
Space Between Tie Bars
(W x H)
mm 309x309 360 x360 410 x410 510 x510 560 x560 620 x620
Shot Position mm 0 - 50 0 - 50 0 - 80 0 -100 0 -100 0 -125
Plunger Stoke mm 130 130 150 175 180 230
Traverse Stroke mm 200 210 210 210 210 340
Injection Force (Max) KN 65 65 90 130 158 182
Diameter Of Plunger mm 45 50 50 55 55 60 65 70 70 75 80 90
Max. Shot Weight (Zn) kg 0.9 1.0 1.2 1.4 1.8 1.95 2.85 3.32 3.1 3.8 5.5 7.0
Hydraulic Pressure MPa 13.0 13.0 14.0 14.5 14.5 14.5
Motor Power KW 7.5 11 15 18.5 22 22
Crucible Capacity(Zn) kg 320 360 360 550 550 1345
Capacity Of Accumulator L 16 20 25 30 30 40
Furnace Fuel kg/h 4.8 4.8 4.8 6.3 6.3 11.2
Wastage Electric cooker KW 30 30 30 30 40 40
Capacity Of Oil Tank L 210 220 250 400 450 800
Weight Of Machine kg 3100 4200 5000 7600 10500 17400

Note: Special requirements can be satisfied.

Main features of cold chamber die casting machine:
-- Adopts triple-tension-rod or C-shape-bracket plus hydraulic elevator device, thus satisfy requirements of moulds.
-- The injecting system adopts separate dual-speed piston and pressure-charge accumulator, and so it can supply high efficient dual-speed injecting speed and pressure increase.
-- The injecting system is equipped with large-diameter logic valve and precise flux-control valve, thus improves injecting reaction and decreases oil pressure vibration. The system also provides precise 4-stage injecting adjustment.
-- Adopts high performance, low noise twin-link pump, saves energy consumption and improves productivity.
-- Adopts automatic centralizing lubricating system. The lubricating frequency can be pre-set directly and so improves machine life.
-- Adopts motor-driven gear system for changing moulds, simple operation, intelligent automatic mould adjusting program, precise calculation of mould locations.
-- Hydraulic ejector is convenient for control. The ejecting speed is adjustable.
-- Hydraulic system adopts dual-proportion control for convenient adjusting pressure and speed of every part.
-- Adopts precise PLC control, with 100 storage units,auto diagnosing and alarming; Mould fixing position is inspected by high precise electro-ruler, position control accuracy can be 0.1mm.



Main technical data of cold chamber die casting machines:
Code Unit ZLC-160 ZLC-300 ZLC-500 ZLC-630 ZLC-1000 ZLC-1600
Clamping Fore KN 1600 3000 5000 6300 10000 16000
Die Stroke mm 380 400 500 650 880 1200
Die Thickness mm 210-560 250-650 350-848 350-850 450-1150 500-1400
Platen Size(HXV) mm 675x680 900x915 1165x1170 1240x1240 1620x1620 2010x1960
Space Between Tie Bars mm 465x465 560x560 760x760 775x775 1030x1030 1180x1180
Tie Bar Diameter mm 80 110 140 160 200 250
Intensification Injection Force KN 250 380 450 616 870 1290
Injection Force KN 110 110 190 200 310 445
Injection Stroke mm 340 465 580 600 820 940
Plunger Diameter mm 50,60,65 50,60,70 70,80,90 70,80,90 90,100,110,120 110-150
Shot Weight kg 1.3,1.8,2.1 1.3,2.5,2.7 4.2,5.5,6.9 4.2,5.8,7.3 9.5,11.7,14.2,17 17-32
Casting Pressure MPa 129,89,76 153,106,78 159,121,96 159,121,96 77-138 73-137
Casting area cm2 120,170,200 185,265,360 385,500,640 390,515,650 730-1305 1165-2190
Max Casting Area Under 40MPa cm2 405 700 1510 1585 2500 4000
Shot Injection Position mm 0-70-140 0-80-160 0-175 0-250 0-300 0-175-350
Plunger Penetration mm 135 160 250 250 320 370
Ejector Force KN 112 140 265 315 500 580
Ejection Strock mm 85 100 130 150 210 2550
Hydraulic Working Pressure MPa 14 14 14 14 16 14
Driving Motor KW 15 18.5 30 37 45 45x2
Oil Tank L 410 620 900 1050 1400 2600
Machine Weight Kg 5800 12500 23000 27500 65500 100000
Note: Special requirements can be satisfied.
