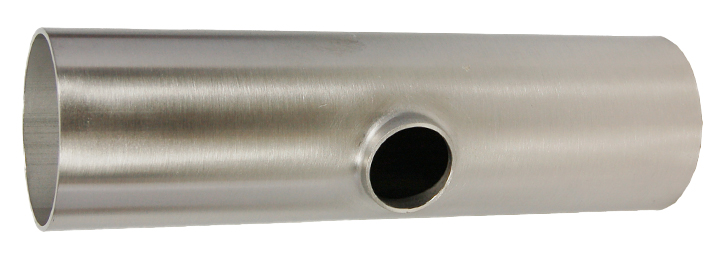

Steel Reduced Tee Manifold Pipe Punching Machine


I Machine description This stainless steel reduced Tee manifold pipe punching machine is designed in three working stations, the first for punching a hole, the second for collaring hole and the third for milling hole top surface.
Different to T-drill pulled Tee technology, this machine adopts internal-pushing method to form collar hole, bringing much better efficiency, consistent wall thickness in the collar area. Owing to servo feeding and rotating, the machine also brings flexibility on spacing of reduced Tees.
By using dual feeding & pulling, this machine can punch collar hoes at any length of the pipe, no terminal margin limit.
II Main features
- Servo feeding, servo pulling, servo rotating, hydraulic punching, hydraulic collaring
- PLC + HMI, full automatic, only manual loading & unloading
- Hole positions can be preset flexibly on the whole length
- Good punching & collaring result, high efficient
- More than 200 programs can be saved for different products
- Hydraulic station is equipped with compulsive electric fan cooling
III Technical parameters
   No.                                       Item                               Data
     1 Max. steel pipe diameter                             Φ60mm
     2 Min. steel pipe diameter                             Φ16mm
     3 Steel pipe wall thickness                          Max. 2.0mm
     4 Applicable pipe length                          Max. 2000mm
     5 Collar hole inner diameter precision                             ±0.05mm
     6 Hole collar height               1.5~2.5mm (after milling)
     7 Verticality between flange and pipe                             ≤0.1mm
     8 Feeding speed                     200-600mm/min
     9 Feeding axis position precision                          ±0.15mm
    10 Rotating speed                            360°/S
    11 Rotating axis position precision                          ±0.20°
    12 Collar hole mouth un-roundness                 Not more than 0.20mm
    13 Steel pipe end un-roundness                 Not more than 0.50mm
    14 Clamping method                             hydraulic
    15 Auxiliary pulling effective stroke                              700mm
    16 Punching efficiency             Around 16 seconds per hole
    17 Program storing capacity                       210 units
    18 Feeding servo motor power                      1kW
    19 Rotating servo motor power                       0.75kW
    20 Pulling servo motor power                       0.75kW
    21 Hole surface milling servo motor power                       0.75kW
    22 Hydraulic station pump motor power                      5.5kW
    23 Hydraulic pressure                  Max. 20MPa
    24 Machine dimension              5000 x 800 x 1100mm
    25 Machine weight                 Around 2000kg

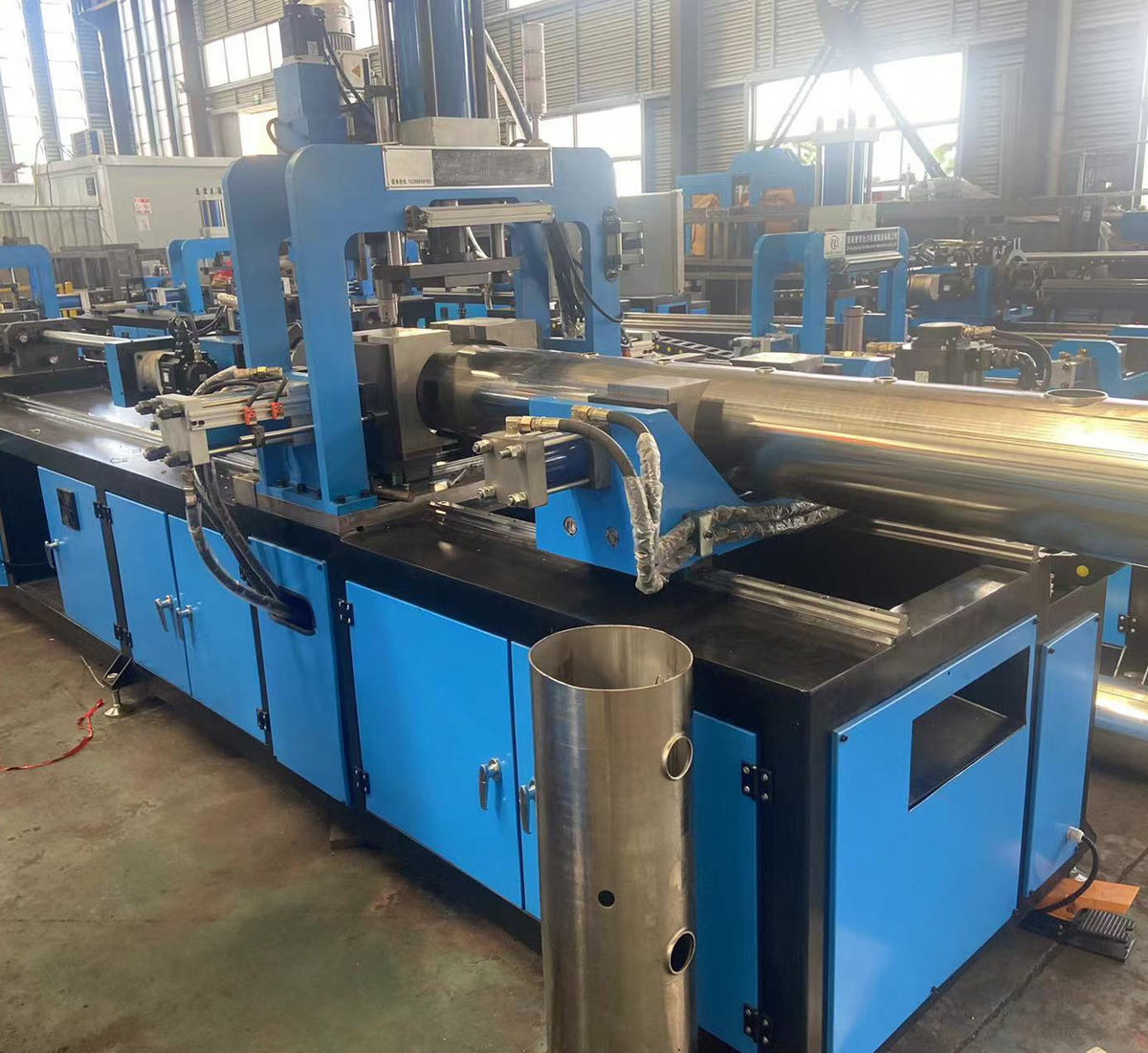

Product display
