Armature Winding Machine



Description of armature winding machine:
This machine is specially designed for winding coils on motor armatures. This machine is full automatic by PLC control, HMI operation, automatic wire traversing.

Main technical data of armature winding machine:

Item Data
Model ZH-ZR190
Armature outer diameter Max. 150mm
Stacking height 50~190mm
Suitable wire copper/aluminum
Wire traversing stroke less than 200mm
Suitable slot numbers ≤4 slots
Power supply 220V, single phase, 50/60Hz, 0.75kW
Machine weight About 550kg
Machine dimension (L x W x H) 1100 x 800 x 1500mm

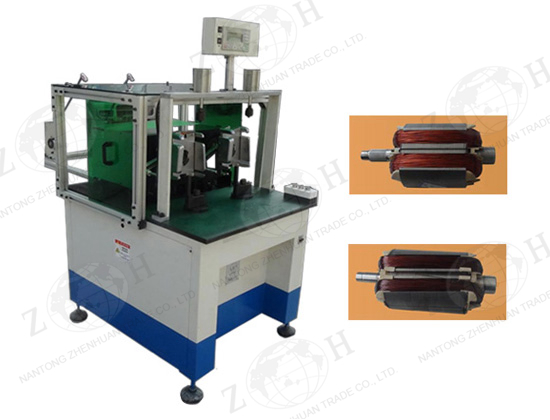

Product display
