Bench taping machine for motor coil
TBJ-15 Table Taping Machine

I Description of the machine
The machine is designed for applying insulation to small and medium stator coils and other deformations.



II Feature
1- Adjustable height of the insulating head, for optimal positioning (alignment) of the coil
2- Reinforced support platform
3- Adjustable rotation speed of the winding head
4- Overlapping is set in the machine
5- Tension of the belt is adjusted manually
6- Suitable for working with various types of tapes
7- The drive pedal (start/stop)
8- Drive rollers with horizontal and vertical orientation
9- Drive roller is used for overlap control.
10- The taping head of this machine is designed with 2 tape reels.

III Main technical data

Machine code TBJ-15
Cross section of the coil 10 x 10mm-20 x 60mm
Coil length 1500mm
Coil window 160-450mm
Max. Reel diameter φ105mm
Standard Reel inner diameter φ36mm
Insulating tape width 20-25mm
Rotation speed 0-300rpm
Overlapping 25%-75%
Overall dimensions 2200 x 1500 x 900mm
Power supply 380V, 3Phase, 50 Hz.
Equipped power consumption 1.5kW
Video link https://youtu.be/lP6BpVBcGzg

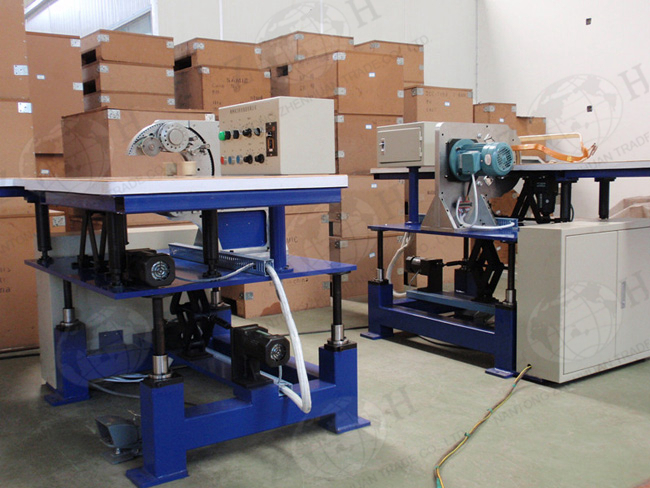

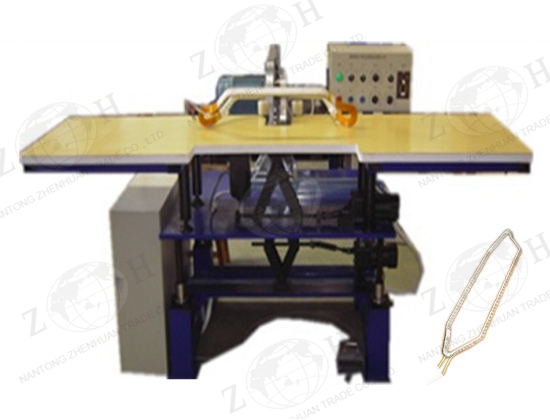

Product display
