Wedge Inserting Machine
Description of wedge inserting machine (vertical)

Main technical data of wedge inserting machine (vertical):
Model C100 C160
Suitable stator stacking height 10~100mm 20~160mm
Suitable stator inner diameter Φ20~80mm Φ50~120mm
Suitable stator outer diameter ≤Φ140mm ≤Φ190mm
Paper edge folding height 2~5mm 3~5mm
Insulation paper thickness ≤0.35mm
Inserting speed About 0.5s per slot About 0.6s per slot
Power supply 380V, 50/60Hz, 0.75kW
Machine weight About 400kg About 500kg
Dimension (L x W x H) 1100 x 650 x 1000mm 1200 x 650 x 1100mm

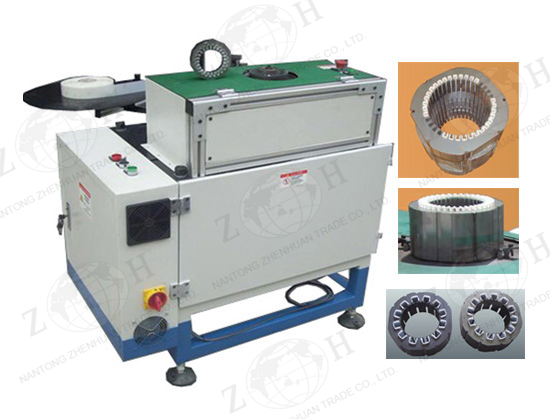

Product display
